Mapsted Mobile SDK (v5+)
If you are looking to upgrade to the latest version of the Mapsted Mobile SDK, please find the v6+ Overview here.
Introduction
What is the Mapsted Maps Mobile Framework?
The Mapsted Maps mobile framework is a cross-platform development toolkit which allows you to quickly integrate Mapsted's core location technology into your own applications. The framework is organized into many modules for easy integration.
Foundational SDKs
The three foundational SDKs are a very common starting point for integrating the Mapsted SDK. The collection of three SDKs forms a solid basis to build upon, as they provide the core functionality (core-sdk), the core map (map-sdk), and the prebuilt map-related UI (map-ui-sdk). Note that, if desired, one could develop their own map and/or map UI instead of using all the foundational SDKs.
core-sdk: This module contains Mapsted's core location positioning technology, analytics data collection, and various data retrieval and wayfinding logic functionality.
map-sdk: This module contains the interactive map, and includes built-in functionality for plotting floorplans, blue-dot, wayfinding routes, etc.
map-ui-sdk: This module builds on the map-sdk by adding various prebuilt map-related UI/UX, including views for the map, itinerary management, route previews, turn-by-turn navigation, and more.
Additional SDKs
ui-components-sdk: A collection of beautiful, modern prebuilt UI/UX components, which are optimized for, and include, built-in integration with the Mapsted Maps mobile framework. You can import these components directly for use in your own application.
geofence-sdk: This module provides the ability to setup programmatic hyperlocal geofences which can be triggered based on a combination of various criteria (e.g., vicinity to a point of interest), direction (e.g., on enter, on exit), as well as other factors (e.g., trigger immediately, trigger on dwell for some timespan). These geofences can be programmatically created and a callback is received if the combinations of conditions trigger simultaneously. Note that these geofences require the mobile sdk to be given location permissions and be running in either the foreground or background.
geofence-offline-sdk: This module provides the ability to trigger push notifcations when the user enters the vicitiny of a given property/venue when the app is currently closed. Note that this module requires that the mapsted-sdk has been previously initialized and also requires the necessary background location permissions.
inapp-notification-sdk: This module provides various prebuilt UI/UX components for displaying in-app notifications (e.g., based on geofence, alert, or location marketing triggers).

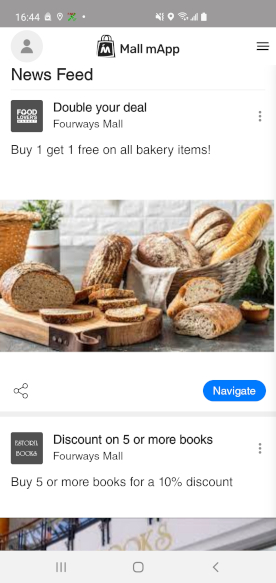

loc-marketing-sdk: This module provides direct integration with the Mapsted Notify CMS to handle various geofence-based triggers and display the corresponding events using the inapp-notification-sdk UI/UX.

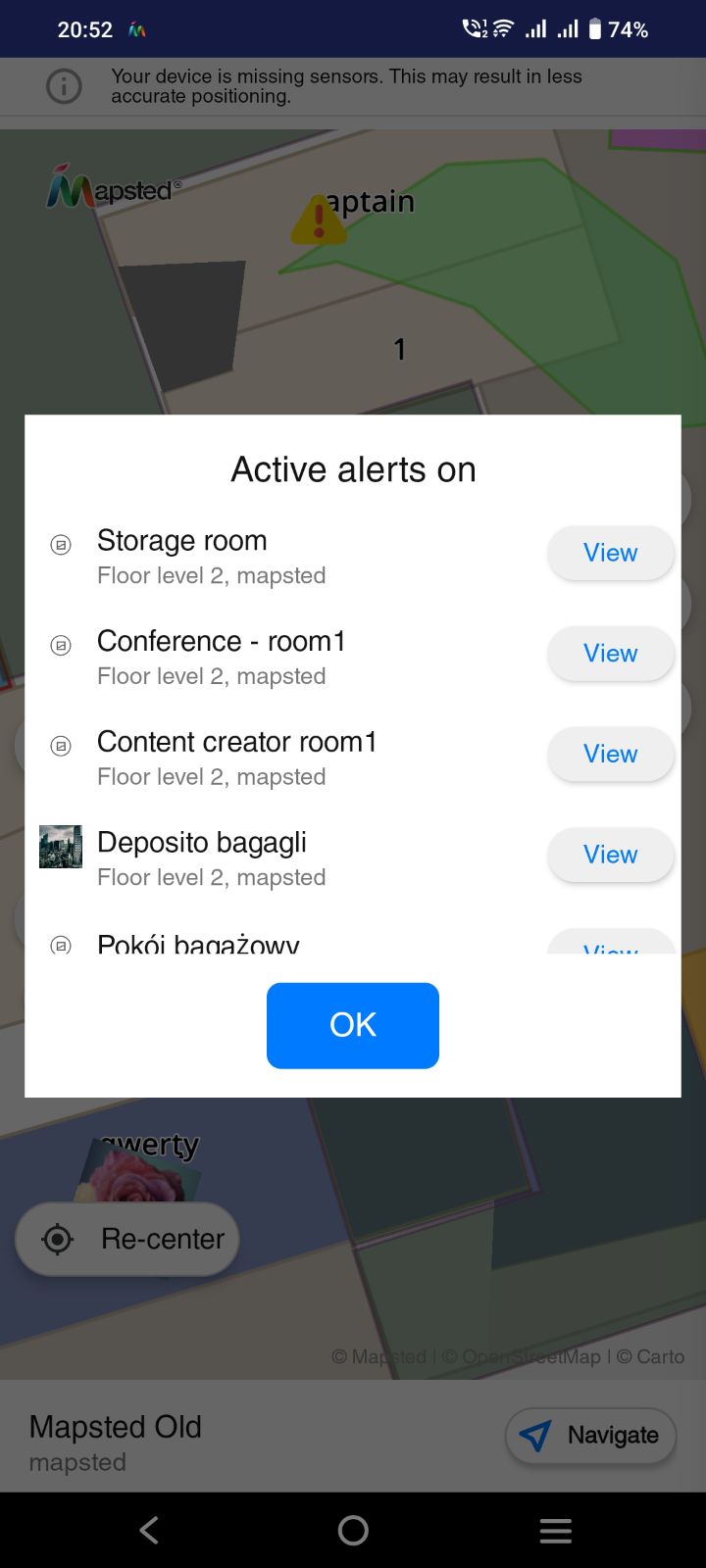

alerts-sdk: This module provides direct integration with the Scheduled and Emergency Alerts which are configured via the Mapsted Manage CMS. The alerts-sdk provides various built-in UI/UX but also incorporates the inapp-notification-sdk UI/UX.
loc-share-sdk: This module provides to quickly share user’s current location to anyone when they are inside a Property premises.
Application Templates
In addition to the mobile-sdk which can be integrated into your applications, Mapsted also offers various app-templates which offer various complete out-of-the-box applications that integrate seamlessly with the mobile-sdk. Note that the app-templates do offer some degree of customization (e.g., colour-scheme, branding). If additional customization is desired, please contact sales.
app-template-core: This is the core app-template module which is required to be imported by all other app-templates. It provides the core/common functionality/utilties which are used for each of the app-templates.

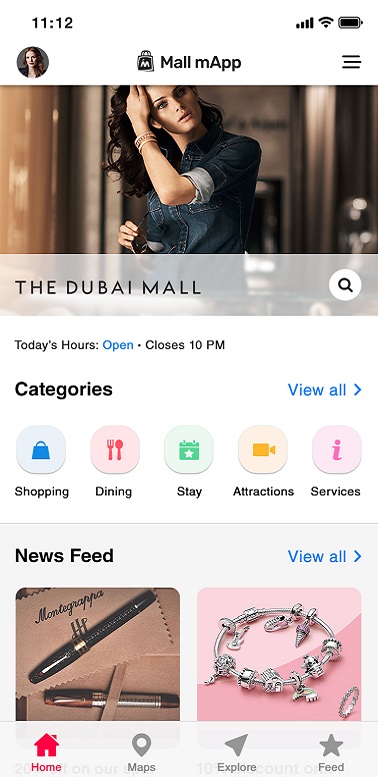

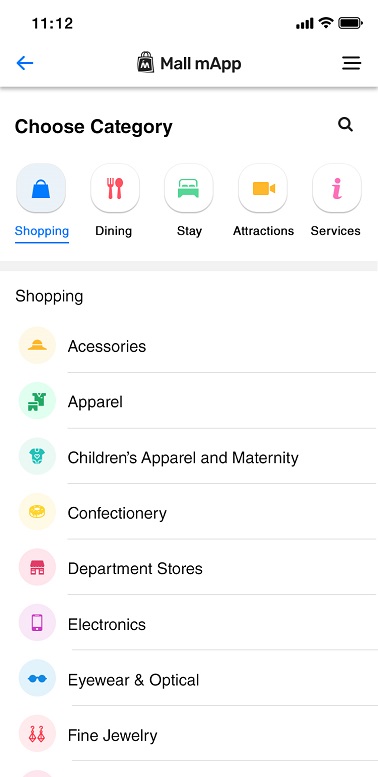

app-template-mall: This app-template was designed for shopping centre venues. It is our recommended template for single-building properties.
app-template-campus: This app-template was designed for campus venues (e.g., university campuses or office complexes). It is our recommended template for multi-building properties.
Mapsted Key Terms
This section will go over some key terminology that is unique to our products, to make it easier for you to get started with the Mapsted Maps Mobile Framework.
Properties, Buildings, and Floors

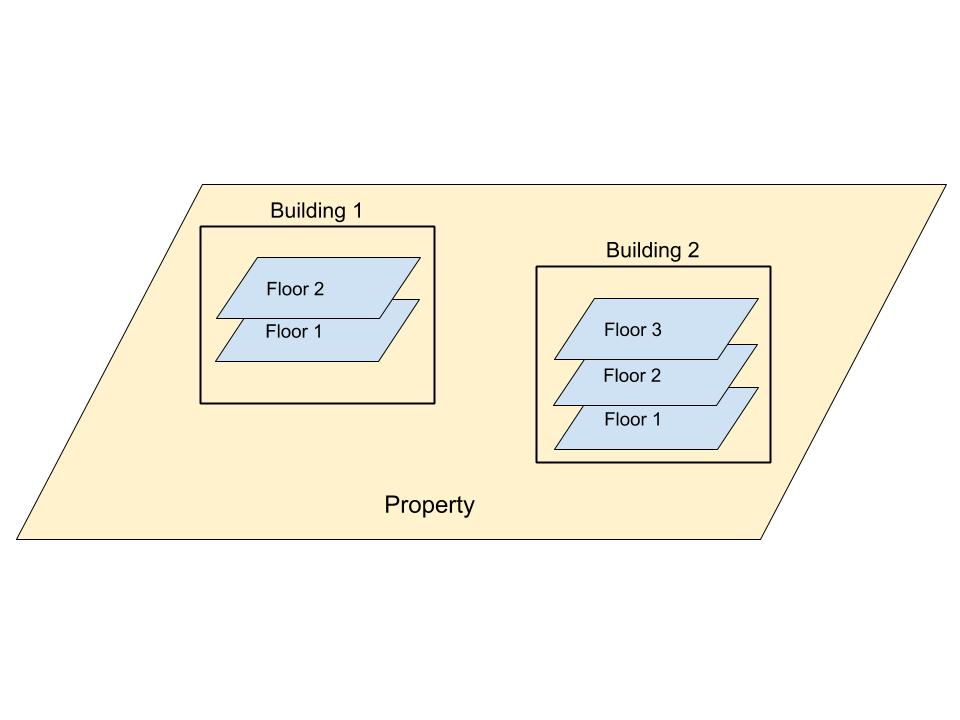

Each venue is referred to as a Property, which consists of one or more Building structures. Each of these Building structures contains one or more Floor structures. The Property establishes a relationship between related buildings. For reference, a visualization of the Property, Building, and Floor structures can be seen in the Figure below.
Each Property is identified by a PropertyId, each Building is identified by a BuildingId, and each Floor is identified by a FloorId. The PropertyId, BuildingId, and FloorId are unique across the Mapsted system.
Entities
An Entity is a fundamental element within a Property or Building. An Entity consists of a geometry type (i.e., MapPolygon, MapPolyline, MapPoint), a physical interpretation (e.g., Structure-Building, Structure-Room, or Obstacle-Wall), and at least one Category (e.g., Restaurant). One Entity can be associated with multiple categories, but each Entity will have one main Category.

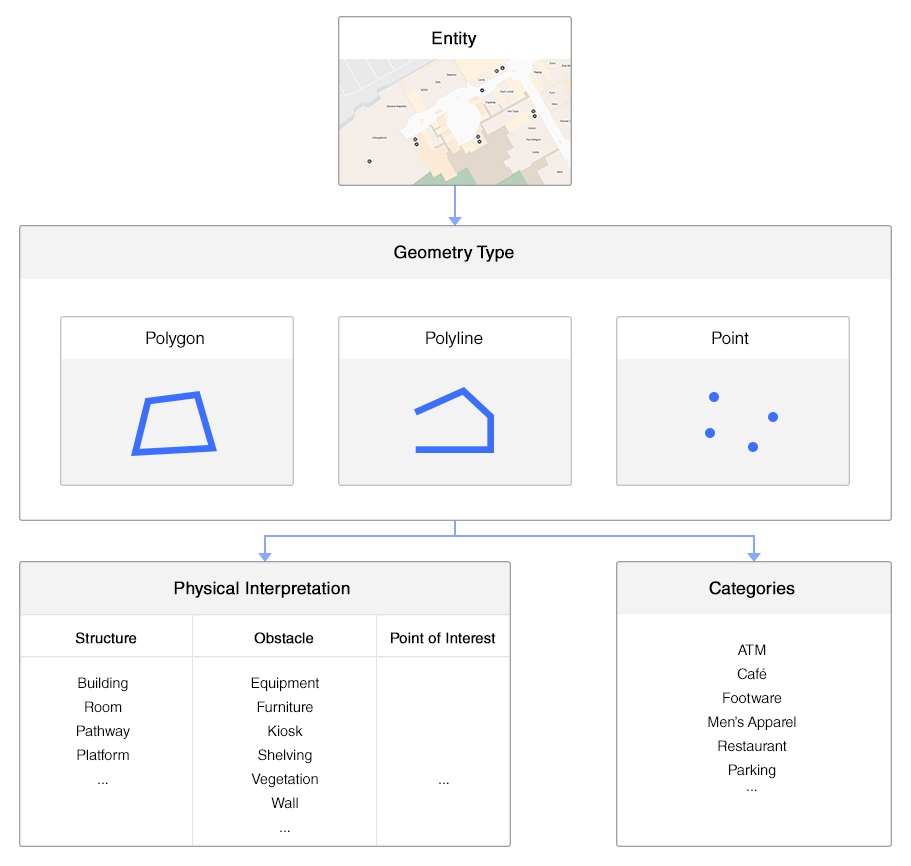

Please see the figure below for a visualization of the Entity structure. Note that an Entity which is on the property-level (e.g., a building, parking garage, park, pond) is found in the PropertyEntities, and an Entity which is on the building-level (e.g., a room, elevator, wall) is found in the BuildingEntities.
Each Entity is identified by an EntityId, and depending on the geometry type, will have an associated PolygonId, PolylineLineId, or PointId. Note that EntityId and corresponding geometry type id are only unique within their scope. This means that for PropertyEntities, the EntityId will be unique to that particular Property. In the case of BuildingEntities, the EntityId will be unique to that Building.
Interactive Map
Map interactions are a fundamental component of Mapsted's mobile map SDK. This section will demonstrate some sample usages.
Map Interactions
The map view supports two types of map interactions, map gestures and map clicks. Map gestures allow for pan, zoom, tilt, and rotations, while map clicks allow for customizable actions (e.g., selection of entities).
Map Gestures
All common map gestures are supported by default. Learn more about the available map gestures and their effects below.
A Map Event listener can be registered to be notified when the map state changes. There are three types of map event notifications available.
- Idle Map: A user is notified when the map view is finished rendering
- Stable Map: A notification is sent out when all map animations have finished, and the user has lifted their fingers off the screen
- Map Moved: This type of notification occurs when a map gesture is in progress, such as when a map is being panned, rotated, tilted, or zoomed
Below is some sample code to register a listener to be notified of map state changes.
// Handle Map's event types
MapApi.MapEventListener mapEventListener = new MapApi.MapEventListener() {
@Override
public void onMapEvent(MapEvent event) {
switch (mapEvent.getEventType()) {
case EventType.MAP_IDLE:
// handle idle event
break;
case EventType.MAP_STABLE:
// handle stable event
break;
case EventType.MAP_MOVED:
// handle map moved event
break;
}
}
};
// Register listener
mapApi.mapView().addMapEventListener(mapEventListener);
// Unregister listener
mapApi.mapView().removeMapEventListener(mapEventListener);
extension YourViewController: MNMapListenerDelegate {
func onMapMoved() {
}
func onMapStable() {
}
func onMapIdle(){
}
}
Map Clicks
Map click events indicate when the user has clicked on the map. A map click event consists of a click type, a click location, and a click entity. See below for definitions of the various types of clicks, including Single Tap, Double Tap, Long Press, and Dual Tap.
MapApi.MapClickListener mapClickListener = new MapApi.MapClickListener() {
@Override
public void onMapClickEvent(MapClickEvent mapClickEvent) {
ClickType clickType = mapClickEvent.getClickType();
IMercatorZone clickLocation = mapClickEvent.getClickLocation();
Entity clickEntity = mapClickEvent.getClickEntity();
// Handle event
}
};
// Register listener
mapApi.mapView().addMapClickListener(mapEventListener);
// Unregister listener
mapApi.mapView().removeMapClickListener(mapEventListener);
/*Your view controller hosting the Mapsted map viewcontroller will
automatically receive map event notifications if it conforms to the
MNMapListenerDelegate delegate. When user taps on the map outside any
vector elements, outsideBuildingTapped gets called with the tap position
and the tap type.*/
extension YourViewController: MNMapListenerDelegate {
func outsideBuildingTapped(tapPos: MNMercator, tapType: MapstedMapApi.TapType) {
DispatchQueue.main.async {
if tapType == .eSingle {
//handle single tap
}
else if tapType == .eLong {
//handle long tap
}
else if tapType == .eDouble {
//handle double tap
}
}
}
}
/*To receive map vector element notifications, your viewcontroller
needs to conform to MNMapVectorElementListenerDelegate. The
onPolygonTapped gets called when user taps on a vector element
on map. The onBalloonClicked gets called when user taps a pop up.*/
extension YourViewController: MNMapVectorElementListenerDelegate {
func onPolygonTapped(polygon: MNMapPolygon, tapType: MapstedMapApi.TapType, tapPos: MNMercator) {
//From polygon clicked, get info such as name, centroid etc.
let centroid = polygon.centroid()
let name = polygon.name()
}
func onBalloonClicked(searchEntity: MNSearchEntity) {
}
}
Automatic Map Actions
The below code sample demonstrates how to enable or disable automatic pan, zoom, tilt, and rotation functionalities. These actions are controlled automatically in Mapsted’s UI SDK.
// Disable auto-follow
mapApi.mapView().camera().setCameraFollowUser(false);
// Enable auto-follow
mapApi.mapView().camera().setCameraFollowUser(true);
// Check auto-follow Status
boolean isCameraFollowUser = mapApi.mapView().camera().isCameraFollowUser();
// Currently, automatically handled in iOS SDK
// Programmatic control will be implemented in an upcoming release
Programmatic Map Actions
You can also programmatically adjust the map to control zoom, tilt, and rotation actions.
/*
Add custom parameters for map view events like zoom, tilt and rotate.
Create a list of UpdateMapEvent.
Add individual map view events with the necessary values.
Set the map view events on UpdateMapEvent object.
Call onUpdateMapEvent passing updateMapEvent object
*/
ArrayList<UpdateMapViewEvent> updateMapViewEvents = new ArrayList<>();
// Add the required map view events
// Specify the type of event, value for that event and the speed at which you want the event to occur
updateMapViewEvents.add(new UpdateMapViewEvent(UpdateMapViewEvent.TILT, 45.0f, 1.0f));
updateMapViewEvents.add(new UpdateMapViewEvent(UpdateMapViewEvent.ZOOM, 20.0f, 0.5f));
updateMapViewEvents.add(new UpdateMapViewEvent(UpdateMapViewEvent.RECENTER, 0f, 0.5f));
updateMapViewEvents.add(new UpdateMapViewEvent(UpdateMapViewEvent.ROTATE, 0f, 0.5f));
UpdateMapEvent updateMapEvent = new UpdateMapEvent();
updateMapEvent.setUpdateMapViewEvents(updateMapViewEvents);
mapApi.mapView().camera().onUpdateMapEvent(updateMapEvent);
//To simply center the map at a specific location at existing zoom, use:
MapstedMapApi.shared.mapView()?.moveToLocation(mercator: MNMercator)
//To center and update zoom use:
MapstedMapApi.shared.mapView()?.moveToLocation(mercator: MNMercator, zoom: Float, duration: Float)
//To rotate map, use:
MapstedMapApi.shared.mapView()?.setRotation(angle: Float, durationSeconds: Float)
//To tilt map, use:
MapstedMapApi.shared.mapView()?.tiltMap(angle: Float, duration: Float)
Offline Maps
All downloaded map data is automatically stored in a local database and available for use offline. The SDK will automatically download map data, as needed, based on what is nearby. Map data downloads can also be managed programmatically, triggered by UI interactions. See below for sample code.
// start downloading map data for a given propertyId
coreApi.properties().startDownload(propertyId, new PropertyDownloadManager.Listener() {
@Override
public void onComplete(int propertyId) {
//oncomplete
}
@Override
void onFail(int propertyId, Exception e){
//onfail
}
@Override
public void onProgress(int propertyId, int current, int total) {
//onprogress
}
});
// When using the Map SDK, you can select and draw the property on the map
// Note that this will internally trigger a map download if it has not previously been downloaded
mapApi.data().selectPropertyAndDrawIfNeeded(propertyId, new SelectPropertyListener() {
@Override
public void onCached(boolean isSuccess, int propertyId){
// If successful, property data has been loaded into memory and property is selected
}
@Override
public void onPlotted(boolean isSuccess, int propertyId){
// If successful, property has completed being drawn on the map
}
});
// Properties can also be undrawn from the map as follows:
mapApi.data().removePropertyFromMap(propertyId);
let myPropertyId = 504
//Get the property manager from CoreApi
let propertyManager = CoreApi.Propertymanager
// To download property data, provide a delegate to
propertyManager.startDownload(propertyId: myPropertyId, propertyDownloadListener: self)
extension myViewController; PropertyDownloadListener {
public func onSuccess(propertyId: Int) {
}
public func onFailureWithProperty(propertyId: Int) {
}
public func onProgress(propertyId: Int, percentage: Float) {
}
}
// To check the download status of a property
let downloadStatus = propertyManager.getDownloadStatus(propertyId: myPropertyId)
// You can retrieve property data using the property identifier
let propertyData = propertyManager.getCached(propertyId: myPropertyId)
// When using the Map SDK, you can select and draw the property on the map
MapstedMapApi.shared.drawProperty(isSelected, propertyData)
// To delete downloaded property data
propertyManager.delete(propertyId: myPropertyId, listener: self)
// To undraw a property from the map using MapSDK
MapstedMapApi.shared.removeProperty(propertyId)
Prebuilt Map View

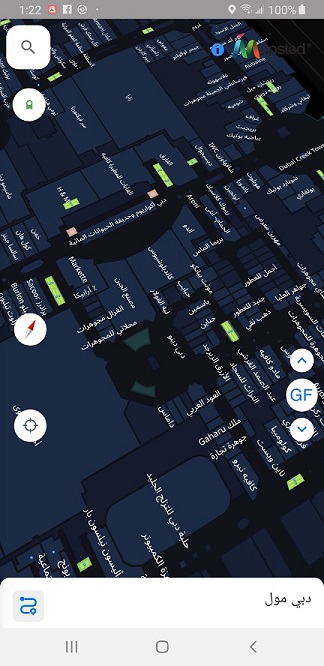

You have the option to customize the Prebuilt Map View in a variety of different ways. A few examples are detailed below.
// Set custom params prior to initializing the Mapsted SDK
CustomParams params = CustomParams.newBuilder(context)
.setBaseMapStyle(BaseMapStyle.DARK) // Set theme to dark
.setMapPanType(MapPanType.RESTRICT_TO_SELECTED_PROPERTY) // restrict map panning to property
.setMapZoomRange(new MapstedMapRange(6.0f, 24.0f)) // restrict map zoom range
.build();
// ...
// Note: For runtime map parameter adjustments, use the following api
mapApi.mapView().camera().setCameraFollowUser(false);
//Set the map theme to dark
MapstedMapApi.shared.setBaseMapStyle(style: .DARK)
//Set map panning to restricted which limits panning to a region around the property
MapstedMapApi.shared.setMapPanType(type: MapstedMapMeta.MapPanType.eRestrictToProperty)
Custom Map View
You can power your application using our position location technology, while using your own MapView. The Location Positioning Technology guide shows you how to access user location information. Mapsted uses Open Street Maps as the georefence for user locations, buildings, and other map elements. If your system uses a basemap such as Google maps or Apple maps, please contact us, so we can make sure that our user locations, buildings, and other map elements are appropriately georeferenced for your basemap.
Intelligent Search
Mapsted's prebuilt UI/UX includes intelligent search. This type of search finds matches based on names, and keywords or categories, and offers suggestions which can handle various typos or spelling errors.
Prebuilt UI/UX
Prebuilt UI/UX automatically uses the intelligent search functionality.
Search via Names/Auto Suggestions

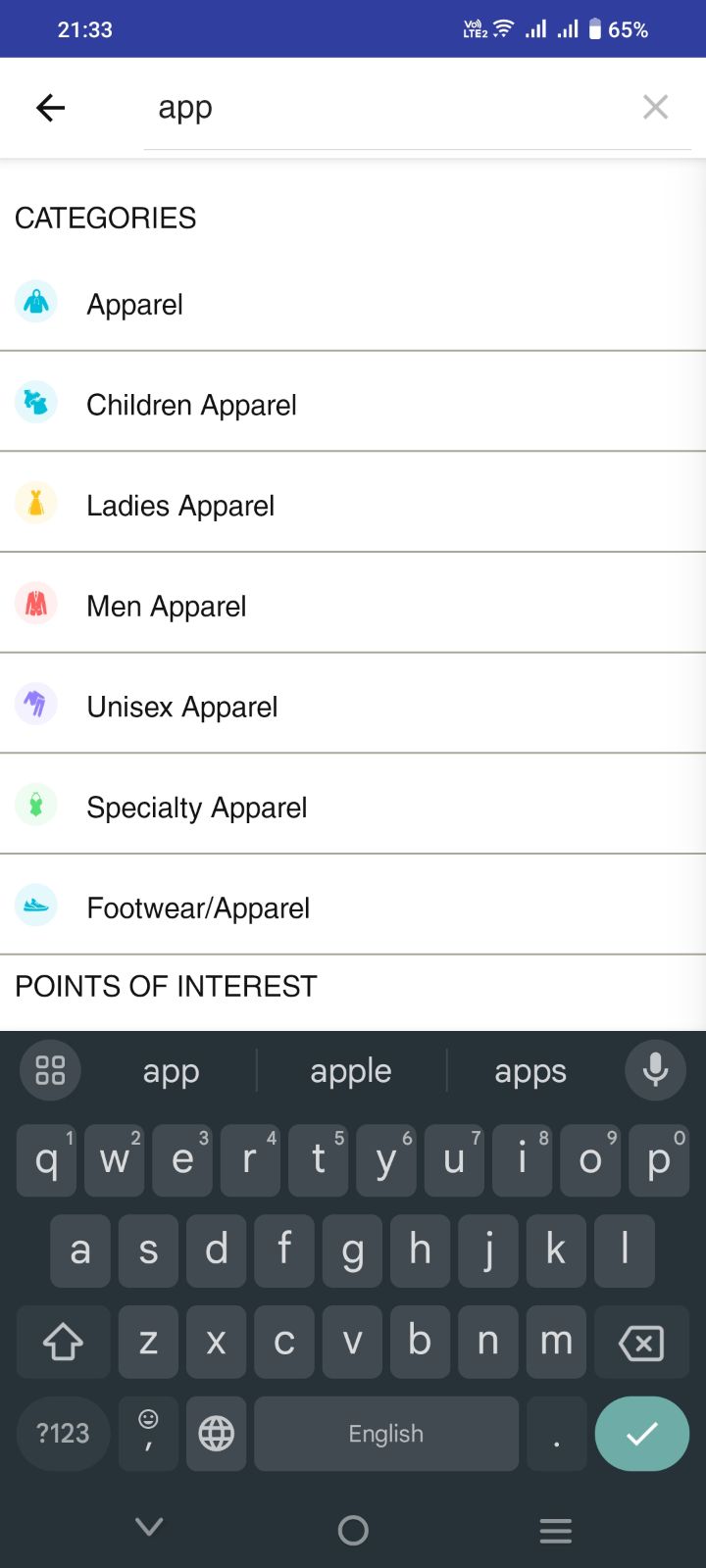

As the user types, auto suggestions are also provided, as shown below.
Search via Categories/Keywords

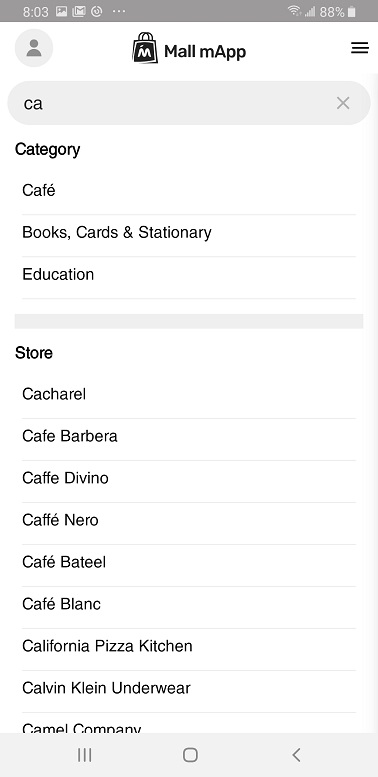

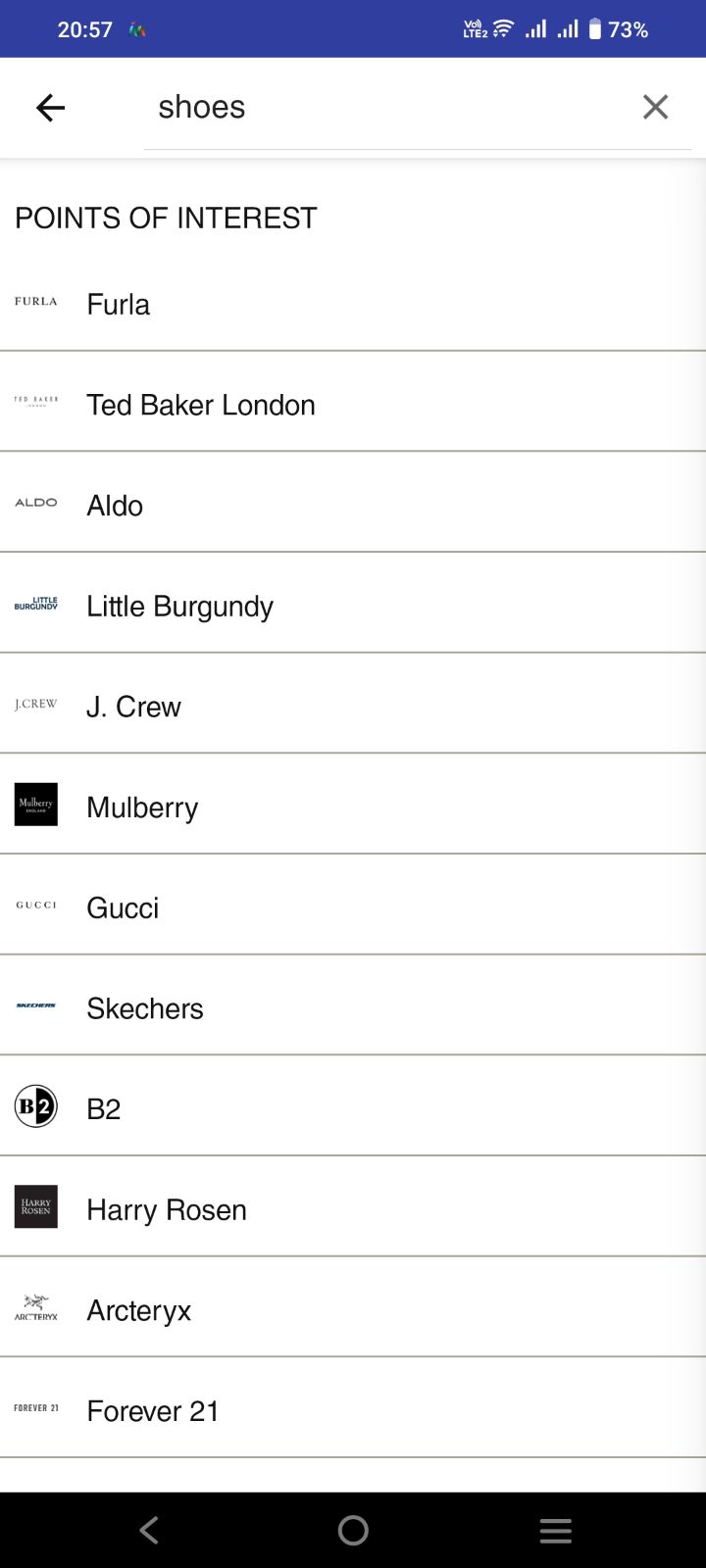

Search is supported by category and keyword.
Search via Reverse Geocoding (Coming Soon)
Reverse geocoding is supported within properties and buildings. Using reverse geocoding, a MercatorZone object, like a ClickLocation from a ClickEvent, can be passed in and an Entity object will be returned. If the specified MercatorZone corresponds to a specific Entity, that entity will be returned, otherwise it will return null.
Customizable UI/UX
If Mapsted's prebuilt UI/UX is not used, the intelligent search functionality can also be programmatically accessed, as shown in the sample code in the section named "Points of Interest".
Points of Interest

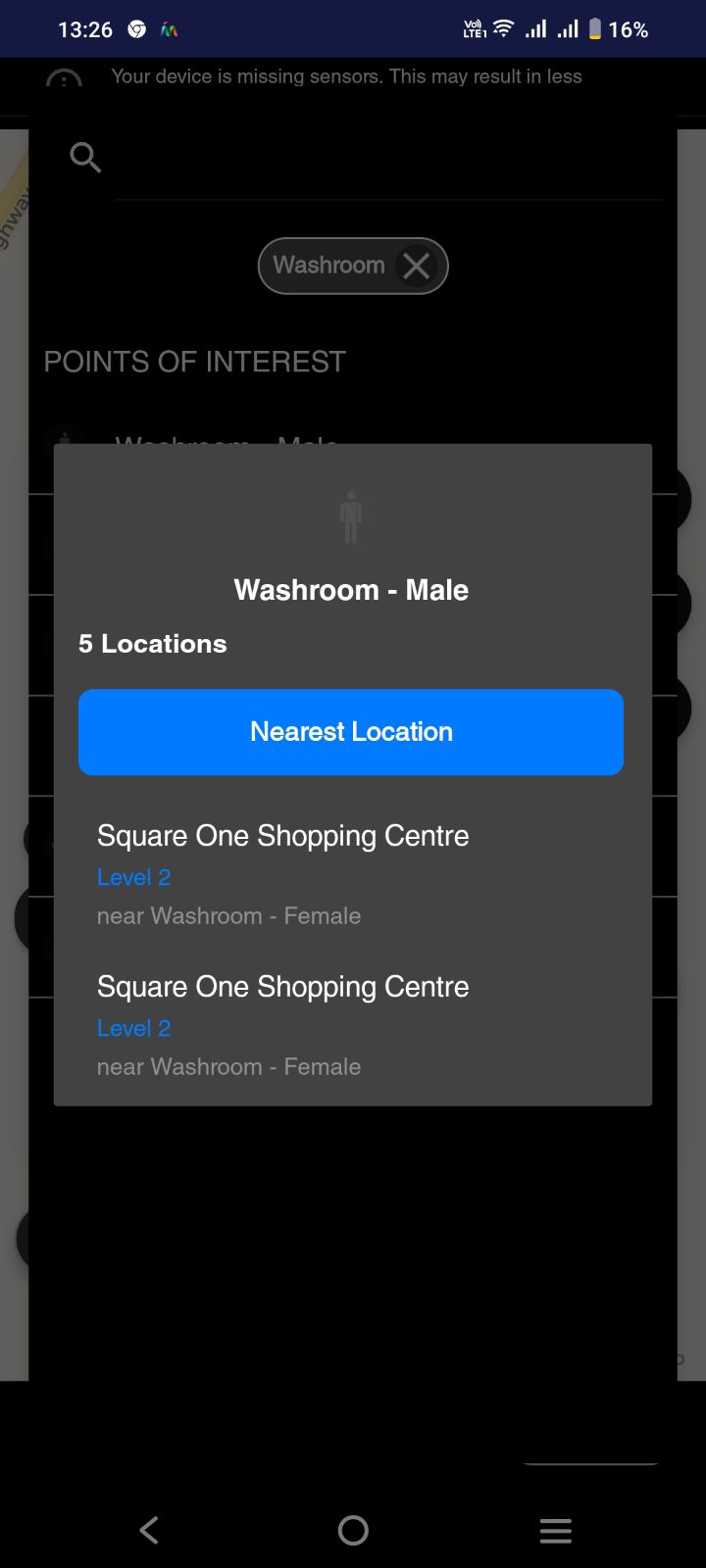

Mapsted's SDK provides several ways to searching for, selecting and navigating to points of interest
Find and Sort Searchables
If Mapsted's prebuilt UI/UX is not used, the intelligent search functionality can also be programmatically accessed, as shown in the sample code below.
int propertyId = 504
// Get a list of searchables for the property
coreApi.properties().getSearchEntityListByPropertyId(propertyId, searchEntities -> {
// Apply filter and sort based on input string query (e.g., query = "ga" would provide a good match for "Gap")
// filterAndSortSearchables method will filter and re-order searchEntities
List<ISearchable> filteredResult = coreApi.utilities().filterAndSortSearchables("ga", searchEntities);
// When complete, UI can now be updated with filteredResult
});
let myPropertyId = 512
// Get a list of searchables for the property
let searchables = CoreApi.PropertyManager.getSearchEntities(propertyId: myPropertyId)
if searchables.isEmpty {
//No matches found.
return;
}
//Sort list of searchables based on intelligent search
let entities = CoreApi.UtilsManager.filterAndSortSearchables(input: "shoe", listOfSearchables: searchables)
for entity in entities {
//Print display name
print(entity.displayName)
//Find matching word and category
let matchWord = entity.matchWord
}
Filters for Points of Interest
To narrow down points of interest by floor, building, category, etc, you can make use of PoiFilters. A PoiFilter is composed of any number of PoiIntersectionFilter constructs.
Each PoiIntersectionFilter will look for items that match a combination of floors, buildings, and categories.
PoiFilter will then combine these to filter items that match ANY of the PoiIntersection filters provided to return the final result.
PoiFilter poiFilter = new PoiFilter.Builder()
.addFilter(new PoiFilter.PoiIntersectionFilter.Builder()
.addFloor(941)
.addCategory("5ff5e93aa950eb2320f177ac") // e.g., Fast Food
.build())
.addFilter(new PoiFilter.PoiIntersectionFilter.Builder()
.addBuilding(504)
.addCategory("5ff5e937a950eb2320f1778d") // e.g., Department Stores
.build())
.build();
coreApi.properties().searchPoi(propertyId, poiFilter, iSearchables -> {
// ...
});
let poiFilter = PoiFilter.Builder()
.addFilter( //Filter #1. Floor 123 and CategoryId "abc1123""
PoiIntersectionFilter
.Builder()
.addFloor(id: 123)
.addCategory(id: "abc1123")
.build()
)
.addFilter( //Filter #2. Floors 456 or 789, AND CategoryId “def923”
PoiIntersectionFilter
.Builder()
.addFloor(id: 456)
.addFloor(id: 789)
.addCategory(id: “def923”)
.build()
)
/*
.addFilter( ... ) //You can add more filters
*/
.build()
let myPropertyId = 512
CoreApi.PropertyManager.searchPOIs(filter: poiFilter, propertyId: myPropertyId, completion: { (searchables: [ISearchable] ) in
for searchable in searchables {
print("#SearchPOI: Found \(searchable.entityId) = \(searchable.displayName) - Floor: \(searchable.floorId)")
}
})
Get nearby entities
When the user is at the property venue and his position is initialized by the sdk, you can get a list of near by entities using following api.
//once the sdk is initialized and user is at a location, you can use `getNearByEntities` to get nearby entities.
//you can use `coreApi.locations().getLastKnownPosition()` to be sure user position is resolved before calling this method.
if(coreApi.locations().getLastKnownPosition() != null) {
coreApi.locations().getNearByEntities(nearbyEntities -> {
// nearbyEntities is a list of `EntityZoneDistance` which contain entity zone and its distance from the user.
// This list is already sorted with nearest first, farthest last.
});
}
CoreApi.LocationManager.getNearbyEntities { listOfEntities in
for entity in listOfEntities {
//do something with each
print("Found \(entity.entityId) - \(entity.displayName)")
}
}
Search Entity
In many venues, there are repeated points of interest (e.g., Washroom entities). As such, Entity objects with the same name are grouped into SearchEntity objects. A SearchEntity is an ISearchable, so it can be used for finding POIs or for wayfinding. In general, a SearchEntity describes the scenario where navigating to any of a list of Entity objects would be equivalent.
In some cases, a user may want to select a specific Entity from a SearchEntity object (e.g., for selecting on the map or for navigating to). If you are using the prebuilt UI/UX, for such scenarios, a dialog UI view is generated which allows the user to select a specific Entity, or alternatively, they can request the closest Entity. Please find the example below.
If you are not using the prebuild UI/UX, you can create your own UI and access the data as follows:
int propertyId = 504; // Square One, sample app property
coreApi.properties().getSearchEntityListByPropertyId(propertyId, searchEntities -> {
for (SearchEntity se : searchEntities){
EntityZoneVector entityZones = se.getEntityZones();
// A searchEntity may have multiple entityZones. To retrieve entities use properties().
for (EntityZone ez : entityZones) {
Entity entity = coreApi.properties().getCachedEntity(ez);
// ...
}
}
});
//Get grouped search entities
let myPropertyId = 123
//Variable to collect groups of search entities having common name
var result: [CMSSearchEntityGroup] = []
//Make sure property data exists
guard let propertyData = CoreApi.PropertyManager.getCached(propertyId: propertyId) else { return }
// Add property's entities
if let entities = propertyData.searchEntities()?.searchEntitiesGrouped() {
result = result + entities
}
for building in property.getBuildingInfos() {
let buildingId = building.getBuildingId()
if let buildingData = CoreApi.BuildingManager.getCached(buildingId: buildingId) {
// Add building's entities
if let entities = buildingData.searchEntities()?.searchEntitiesGrouped() {
result = result + entities
}
}
}
//Iterate through each group
for group in result {
print(group.groupName)
//Find entities in the group that share the same name
for entity in group.entities {
//Use propertyId, buildingId, etc
}
}
Find Entities by Name
If Mapsted's prebuilt UI/UX is not used, the intelligent search functionality can also be programmatically accessed, as shown in the sample code below. Note that this feature is heavier, with a O(N) complexity, as it is required to do a linear search. This can be useful for various integration purposes; however, whenever possible, please fetch items by Ids, which would have a O(1) complexity.
coreApi.properties().findEntityByName(name, propertyId, searchEntities -> {
// use searchEntities (empty if no matches found)
});
let myPropertyId = 512
let nameOfEntity = "Shoe Vendor"
// Get a matching list by name of searchables for the property (empty if no matches found)
let searchables = CoreApi.PropertyManager.findEntityByName(name: nameOfEntity, propertyId: myPropertyId)
Select and Deselect Entity
To select or deselect entities on map ...
Entity entity = ... // can use coreApi.properties() to get Entity
mapApi.data().selectEntity(entity);
// To clear selected Entity
mapApi.data().deselectEntity();
let myEntity = ... //(Any of those entities you obtained by search)
//Select entity on map
MapstedMapApi.shared.selectEntity(entity: myEntity)
//Deselect map
MapstedMapApi.shared.deselectEntity()
Distance or Time estimate to an entity
You can get distance between entities or user & entity or between two mercator zones using the following api methods. Check the callback for the result DistanceTime object.
DistanceTime contains the distance in meters and time to reach the destination in minutes.
// Distance time between user and searchEntity
SeachEntity searchEntity = ...;
RouteOptions routeOptions = null; // uses default
coreApi.routing().getDistanceTimeEstimate(searchEntity, routeOptions, distanceTime -> {
if (distanceTime == null) { return; }
float distanceMeters = distanceTime.getDistanceMeters();
double timeMinutes = distanceTime.getTimeMinutes();
// ...
});
// Distance time between user and a mercator zone
IMercatorZone mercatorZone = ...;
RouteOptions routeOptions = null; // uses default
coreApi.routing().getDistanceTimeEstimate(mercatorZone, routeOptions, distanceTime -> {
// ...
});
// Distance time between two mercator zones
IMercatorZone startMercatorZone = ...;
IMercatorZone toMercatorZone = ...;
RouteOptions routeOptions = null; // uses default
coreApi.routing().getDistanceTimeEstimate(startMercatorZone, toMercatorZone, routeOptions, distanceTime -> {
// ...
});
//distance from current user to some destination entity
let destination: MNSearchEntity = ...
let routeOptions: MNRouteOptions = ....
CoreApi.RoutingManager.requestEstimateFromCurrentLocation(
destination: destination,
routeOptions: routeOptions,
completion: { distTime in
if let distanceTime = distTime {
print("Estimated distance is \(distanceTime.distanceInMeters)")
print("Estimated time is \(distanceTime.timeInMinutes)")
}
})
//distance from one entity to another entity
let from: MNSearchEntity = ...
let to: MNSearchEntity = ...
let routeOptions: MNRouteOptions = ....
CoreApi.RoutingManager.requestEstimate(start: from,
destination: to,
routeOptions: routeOptions,
completion: { distTime in
if let distanceTime = distTime {
print("Estimated distance is \(distanceTime.distanceInMeters)")
print("Estimated time is \(distanceTime.timeInMinutes)")
}
})
Categories
Property-level Entities or those inside a Building can have a category associated with them. A category has a unique identifier (UID), name, and associated icon. A category can also have child categories such that the category becomes their parent. Currently there are upto three levels of hierarchies in the system. Root Categories are at the top level, Each root category can have any number of child categories which make the second level. And each of those categories can have any number of child categories which comprise the third level.
You can get all categories associated with a property using coreApi.properties(). The CategoriesResult object has multiple methods to provide the categories as hierarchical or as flattened list.
int propertyId = 504;
coreApi.properties().getCategories(propertyId, categoriesResult -> {
// get all categories in flat list
List<Category> allCategories = categoriesResult.getAllCategories();
// get tree-based root categories
List<Category> rootCategories = categoriesResult.getRootCategories();
});
let myPropertyId = 123
CoreApi.PropertyManager.getCategories(propertyId: myPropertyId, callback: { result in
guard let result = result else {
return
}
//All available categories
let allCategories = result.getAllCategories()
self.doSomethingWithCategories(categories: allCategories)
//Find categories by id
let wantedCategoryId = "abc123"
if let category = result.findById(uuid: wantedCategoryId) {
//Found category by its id
}
//Try to find by name
let name = "room"
let categoriesWithName = result.findByName(name: name)
for match in categoriesWithName {
print("#Category.findByName(\"\(name)\") matched by \(match.id) = \(match.name)")
}
}
func doSomethingWithCategories(categories: [iCategory]) {
//Get information about the category
for category in categories {
//Get name and id
print("Category \(category.id) = \(category.name)")
//Check if it's a root category
let isRoot = (category.type == .Root)
//Get child categories, if any
for child in category.getChildCategories() { //Level 2 categories
//Get name
print("Category \(child.name)")
//Check if it's a root category. Always false except for the first level
let isRoot = (category.type == .Root)
for grandChild in child.getChildCategories() {
//Print information
print("Category Level 3: \(grandChild.name)")
}
}
}
}
Location Positioning Technology
Our Location positioning technology allows for user position updates in location-enabled indoor venues and outdoor spaces. Mapsted’s technology relies on innovative, adaptive, data-fusion, and self-learning algorithms to deliver accurate, scalable indoor and outdoor positioning technology using any off-the-shelf smart-phone. The technology is forward-thinking in nature. It uses disturbances (e.g., magnetic, wireless) in the environment to learn and determine location. Basically, it approaches the problem by converting the interference, or noise, in the environment into useful information. The Figure below will give you a high-level overview of how this location positioning technology works.
User Positioning
A user's position is defined by a Position object. The Position object includes the user's IZone, which includes a propertyId, buildingId, and floorId, representing where the user is located. If any of these Ids show a value of -1, then it means they are not available. Some examples are detailed below.
Outdoor Positioning
The location positioning technology engine is seamless. It uses the same mechanism to return positions whether the user is indoors or outdoors. Based on the returned Position object, you can determine whether a user is outdoors, for example.
propertyId = -1means the user is not on any premises,propertyId > 0andbuildingId = -1means the user is on the premises of the specified propertyId, but not inside any of its buildings.
Indoor Positioning
Similarly to outdoor positioning, when the user is indoors, this can be identified based on the returned Position object, as follows.
propertyId > 0,buildingId > 0, andfloorId > 0means that the user is on the propertyId within the buildingId, and on the floorId.
Programmatically Handling User Positions
There are two types of Position events that you can register as a listener for. The first type is a standard Position event. Position events are continuously updated by the positioning SDK, depending on the user's current activity and the type of data sources available. The second event type is PositionAnimation, which occurs when the user is in motion. PositionAnimation events dynamically update the user position at 30 frames per second, creating a smooth UI/UX experience when the user marker is in motion.
The Position event listener should be used for business logic processing based on a position update, and the PositionAnimation event listener should be used for displaying the user marker on a map UI to ensure the best user experience. The Position event listener is typically updated roughly every second, when the user is in motion. The PositionAnimation event listener is updated approximately 30 times per second when the user is in motion, to ensure smooth animation for enhanced UI/UX.
// Position Changes:
// -----------------
// Updated roughly every 1 second
// This should be used for core processing/logic based on loca
PositionChangeListener positionChangeListener = position -> {
int propertyId = position.getPropertyId();
int buildingId = position.getBuildingId();
int floorId = position.getFloorId();
double x = position.getX();
double y = position.getY();
};
coreApi.locations().addPositionChangeListener(positionChangeListener);
//...
//when no longer needed, remove the listener
coreApi.locations().removePositionChangeListener(positionChangeListener);
// Position Animation Changes:
// -----------------
// Updated roughly 30x per seconds (30 fps) when user is in motion
// This provides a smooth animation for updating UI
PositionAnimationListener positionAnimationListener = position -> {
int propertyId = position.getPropertyId();
int buildingId = position.getBuildingId();
int floorId = position.getFloorId();
double x = position.getX();
double y = position.getY();
};
coreApi.locations().addPositionAnimationListener(positionAnimationListener);
//...
//when no longer needed, remove the listener
coreApi.locations().removePositionAnimationListener(positionAnimationListener);
// Observe Position change events
// Updated roughly every 1 second
//Your viewcontroller needs to register for position updates as follows:
CoreApi.LocationManager.addPositionChangeListener(listener: self)
//You can satisfy the protocol requirements by implementing the required method
extension YourViewController: PositionChangeListener {
// Updated roughly every 1 second
public func onPositionChange(position: MNPosition) {
let propertyId = position.zone().propertyId()
let buildingId = encrypted.zone().buildingId()
let floorId = encrypted.zone().floorId()
let x = position.loc.x
let y = position.loc.y
}
}
/ Observe Position Animation change events
// Updated roughly 30 fps when user is in motion
//Your viewcontroller needs to register for position animation updates as follows:
CoreApi.LocationManager.addPositionAnimationListener(listener: self)
//You can satisfy the protocol requirements by implementing the required method
extension YourViewController: PositionAnimationListener {
func onPositionAnimation(position: MNPosition, animationBegins: Bool) {
//process new position
}
}
Phone/User Heading
The Heading is a float which represents the direction that the user is currently facing. Bearing is specified in radians clockwise from North. This listener is only called when the user is on the premises of a property. Note that the heading change listeners are called roughly every 100 ms, but they only report change events if the heading change has differed by more than 1 degree.
// PhoneHeading tracks the heading of the device itself
CoreApi.PhoneHeadingChangeListener phoneHeadingChangeListener = headingRad -> {
// headingRad is specified in radians clockwise from North
// E.g., conver to degrees, if required
float headingDeg = headingRad * 180.0F / Math.PI;
};
// UserHeading tracks the heading of the user (independent of device orientation)
CoreApi.UserHeadingChangeListener userHeadingChangeListener = headingRad -> {
// ...
};
// FusedHeading tracks both phone and user heading and alternatives depending on the scenario.
// When the user is mostly stationary, it will provide phone heading (e.g., user turning and looking around)
// When the user is in motion, it will provide user heading (e.g., identifying direction of travel)
CoreApi.FusedUserHeadingChangeListener fusedHeadingChangeListener = headingRad -> {
// ...
};
// Register listeners, as desired
coreApi.locations().heading().addPhoneHeadingChangeListener(phoneHeadingChangeListener);
coreApi.locations().heading().addUserHeadingChangeListener(userHeadingChangeListener);
coreApi.locations().heading().addFusedUserHeadingChangeListener(fusedHeadingChangeListener);
//...
//when no longer needed, remove listeners
coreApi.locations().heading().removePhoneHeadingChangeListener(phoneHeadingChangeListener);
coreApi.locations().heading().removeUserHeadingChangeListener(userHeadingChangeListener);
coreApi.locations().heading().removeFusedUserHeadingChangeListener(fusedHeadingChangeListener);
//Your viewcontroller needs to register for bearing updates as follows:
CoreApi.LocationManager.addBearingChangeListener(listener: self)
//You can satisfy the protocol requirements by implementing the required method
extension YourViewController : BearingChangeListener {
func onBearingChanged(degrees: CGFloat) {
// bearing is specified in degrees clockwise from North
}
}
Coordinate Systems
Mapsted uses the Universal Transverse Mercator (UTM, EPSG:3857) coordinate system to repesent the global (x,y) position in meters. Support is also provided for latitude and longitude (WGS84) in degrees, as shown below.
LatLng latLng_1 = new LatLng(someLatitude, someLongitude);
Mercator mercator_1 = MapCalc.toMercator(latLng); // From WGS84 to EPSG:3857
Mercator mercator_2 = new Mercator(someX, someY);
LatLng latLng_2 = MapCalc.toLatLng(mercator.getX(), mercator.getY()); // From EPSG:3857 to Lat, Lng
let pos1 = MNMercator(lat: someLatitude, lng: someLongitude)
print("X: \(pos1.x) Y: \(pos1.y)") // From WGS84 to EPSG:3857
let pos2 = MNMercator(x: someX, y: someY, z: someZ)
let latLng:CLLocationCoordinate2D = MNMercator.latLong(from: pos2) // From EPSG:3857 to Lat, Lng
print("Lat: \(latLng.latitude) Long: \(latLng.longitude)")
Wayfinding
Wayfinding uses Mapsted's advanced routing technology to generate optimal routes to help users get around in selected properties and buildings. The wayfinding engine can handle property-wide multi-destination routing. Each RouteRequest consists of a start location, such as the user's current location or a point of interest, and a list of destination locations or points of interest. The RouteRequest also consists of several RouteOptions that determine which accessibility measures are necessary, the order the user would like to navigate to the destinations in, and allow for the use of optimized routes.
The RouteResponse consists of a list of Route objects, where each Route consists of a list of RouteSegment objects. Each RouteSegment corresponds to a portion of the route on a specific floor of a building, or property level, for example outdoors, and is linked via a TransitionType enum. A figure showing an illustrative example of a RouteResponse is shown below. In the illustrative example above, the user is navigating from a location on Level 2 of Building A to a location on Level 1 of Building B. As shown, the route from point A to point B involves four RouteSegments and includes three transitions - between floors, to outdoors, and to indoors.
Prebuilt UI/UX

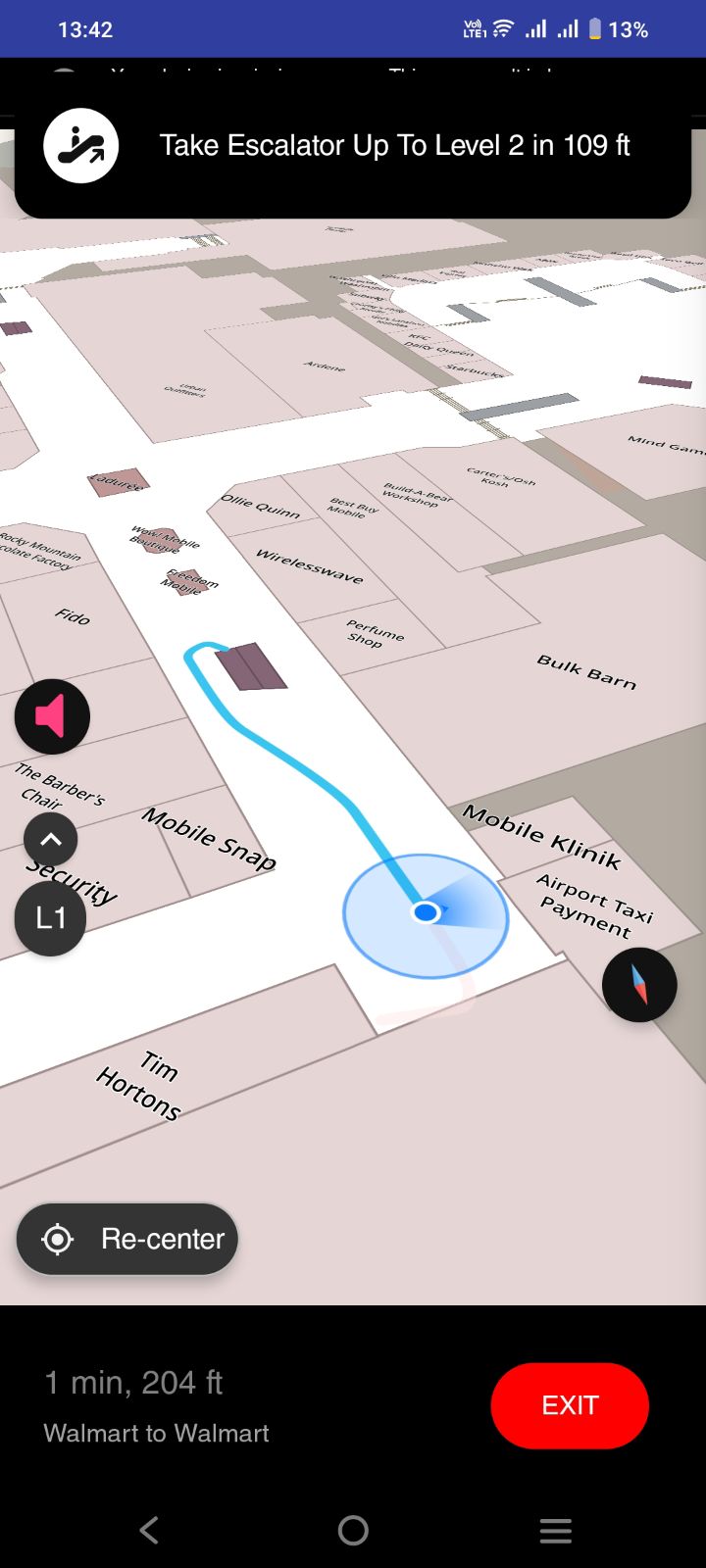

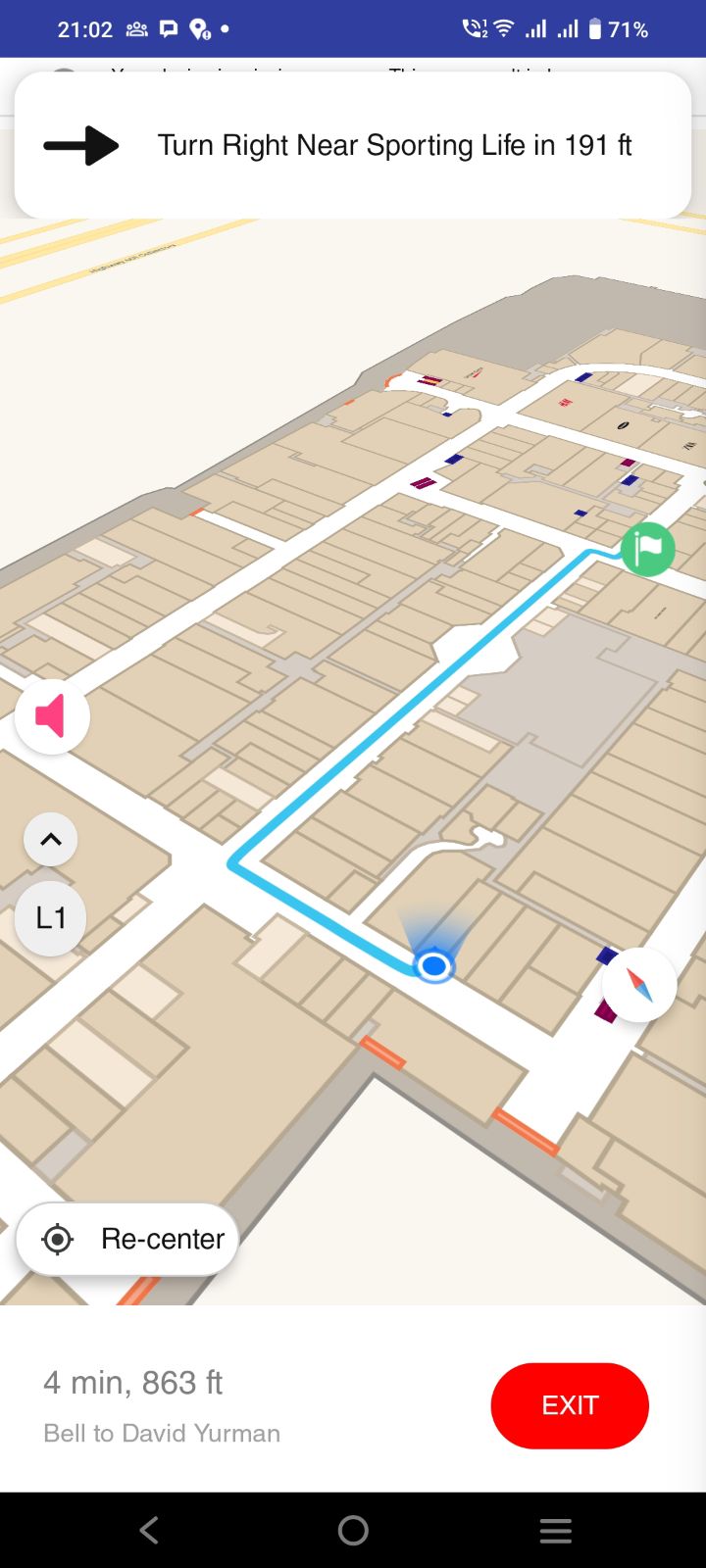

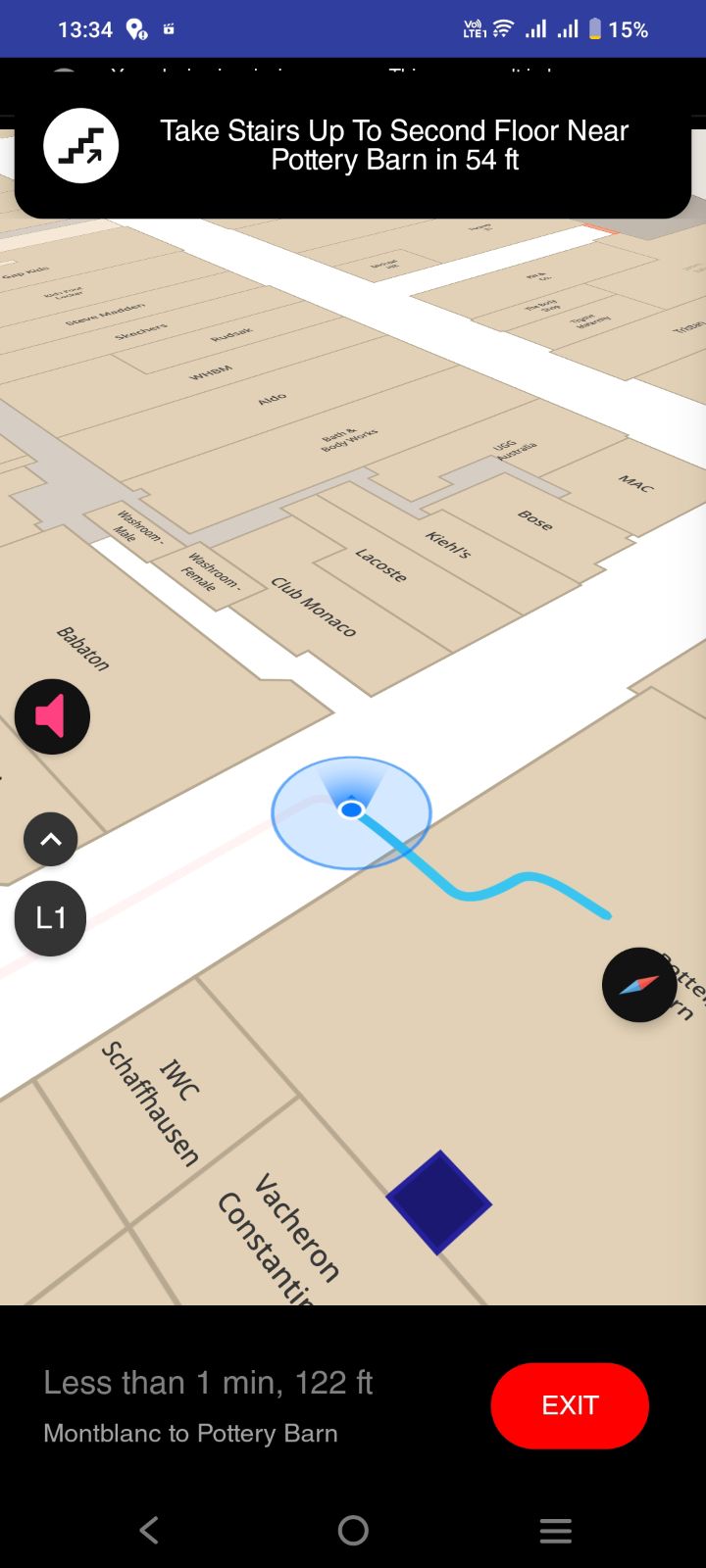

When using the Prebuilt UI/UX, the wayfinding functionality is automatically in use.
Customizable UI/UX

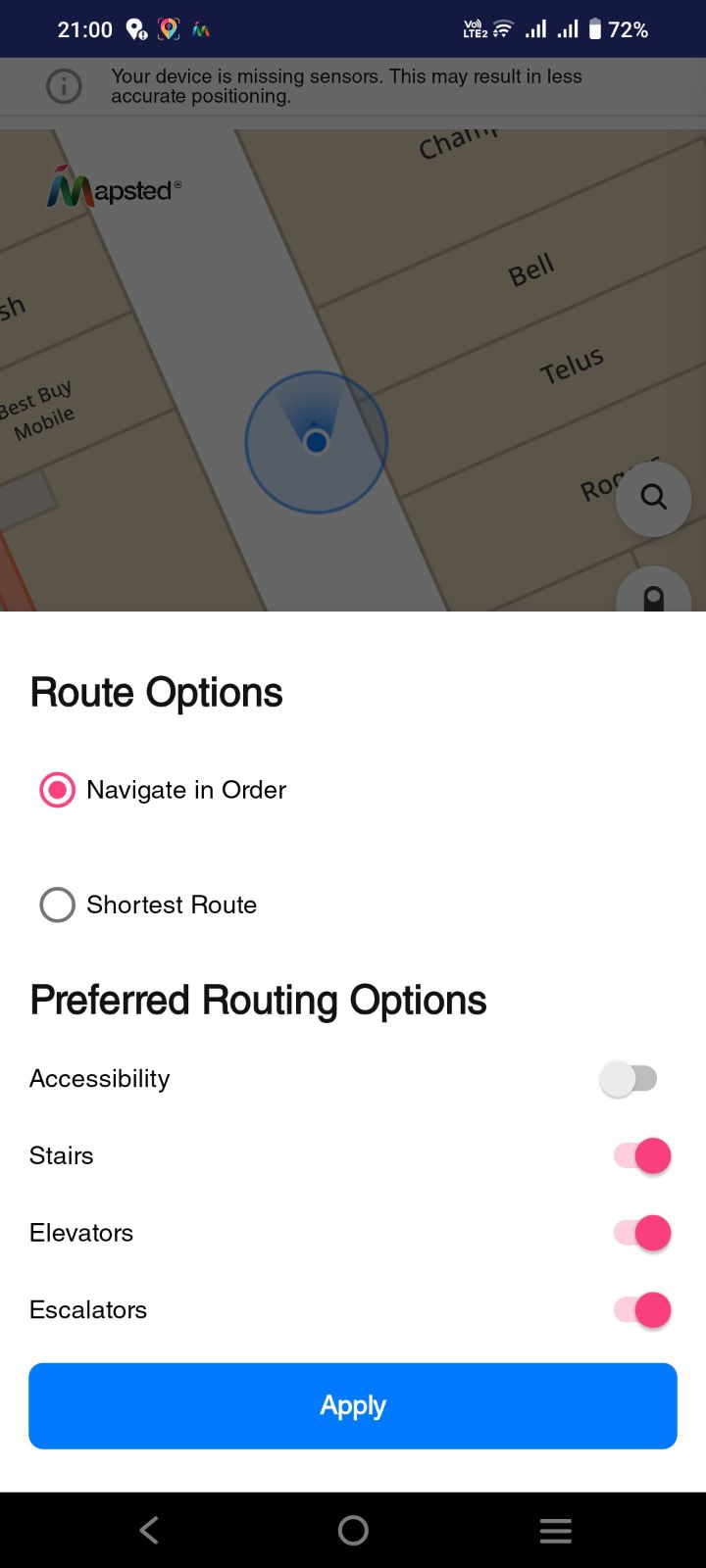

There are a number of customizable routing parameters available, which can be set programmatically, as outlined below.
Programmatic Wayfinding
// Setup desired routing options
// OptimizedRoute will re-order destinations optimally, if set to false will navigate in order
// If Accessibility is true, it may override the behaviour of Stairs/Elevator/Escalator
RouteOptions routingOptions = new RouteOptions();
routingOptions.setOptimizeRoute(true);
routingOptions.setFromCurrentLocation(false); // true if routing from user's position
routingOptions.setAccessibility(false);
routingOptions.setIncludeElevators(true);
routingOptions.setIncludeEscalators(true);
routingOptions.setIncludeStairs(true);
//enable use of emergency exits
routingOptions.setEmergency(false);
// Create waypoints using WaypointHelper or Waypoint.Builder
Waypoint waypoint1 = WaypointHelper.from(iSearchable1);
Waypoint waypoint2 = new Waypoint.Builder().addLocation(mercatorZone2).build();
Waypoint waypoint3 = WaypointHelper.from(searchEntity3);
RouteRequest routeRequest = new RouteRequest.Builder()
.setRouteOptions(routingOptions)
.setStartWaypoint(waypoint1) // only if not from 'MyLocation'
.addDestinationWaypoint(waypoint2) // add possibly multiple destinations
.addDestinationWaypoint(waypoint3)
.build();
// Start Async route request
// Response will be passed to the RoutingRequestCallback
// UI should be updated accordingly
coreApi.routing().requestRouting(routingRequest, new RoutingRequestCallback() {
@Override
public void onSuccess(RoutingResponse routingResponse) {
//use routingResponse
// If user desires to begin navigation, can be started by using:
Route route = routingResponse.getRoutes().get(0);
RoutingStatusCallback routingStatusCallback = new RoutingStatusCallback() {
@Override
public void onRoutingStatus(boolean isRoutingModeOn, RoutingResponse latestRouteResponse) {
// Indicates a status change for the latest route response
// For example, if isRoutingModeOn is false, UI can adjust accordingly
}
@Override
public void onRouteSegmentReached(RouteSegment currentRouteSegment,
List<RouteSegment> visitedRouteSegments,
List<RouteSegment> upcomingRouteSegments) {
// Called when a route segment has been reached (e.g., change of floors, buildings)
}
@Override
public void onRouteInstruction(RouteNode nextKeyNode,
@Nullable RouteNode nextKeyNodeNextQuickInstruction) {
// Called when a new instruction is available for the real-time navigating user
// nextKeyNode indicates the next instruction
// nextKeyNodeNextQuickInstruction indicates that there is a follow-up instruction shortly thereafter
// For example,
// nextKeyNode instruction: "Take Elevator to L3"
// nextKeyNodeNextQuickInstruction instruction: "Then turn left in 5 m"
}
@Override
public void onUserProgressAlongRoute(RouteUserProgress routeUserProgress) {
// This function will be called as user continues progress along route
// This can be used to indicate user progress via UI
}
@Override
public void onRouteRecalculation(RoutingResponse routingResponse) {
// Called when the user deviates from the route provided
// and a new route is automatically recalculated
}
@Override
public void onDestinationReached(Waypoint destination) {
// Reached destination of this route
}
}
coreApi.routing().startNavigation(route, routingStatusCallback);
// Navigation can be cancelled midway through (e.g., user UI interactions) by calling:
coreApi.routing().stopNavigation();
}
@Override
public void onError(CppRouteResponse.SDKErrorType errorType, List<String> alertIds) {
// Failed
}
});
// To make a route request, you should first setup your desired routing options
/*
- optimizedRoute = false will navigate in order
- optimizedRoute = true will re-order destinations optimally
*/
let optimizedRoute = true
//Preferred transition options
let useStairs = false
let useEscalators = true
let useElevators = true
// There is also an accessibility option provided - it may override the behaviour of Stairs/Elevator/Escalator
routeOptions.setAccesibility(true)
let calculateFromCurrentLocation = true
let routeOptions = MNRouteOptions.init(useStairs, escalators: useEscalators, elevators: useElevators, current: calculateFromCurrentLocation, optimized: optimizedRoute)
//Build a route request
var routeRequest: MNRouteRequest?
if calculateFromCurrentLocation { //startEntity is passed as nil
routeRequest = MNRouteRequest.init(routeOptions: routeOptions, destinations: destinations, startEntity: nil)
}
else { //destinationsMinusStart is an array of destinations excluding the start
routeRequest = MNRouteRequest.init(routeOptions: routeOptions, destinations: destinationsMinusStart, startEntity: startEntity)
}
if let routeRequest = routeRequest {
CoreApi.RoutingManager.requestRoute(request: routeRequest, routingRequestCallback: self)
}
var routes : [MNRoute] = []
// To receive the callback after you make the route request, you will need to have implemented the RoutingRequestCallback protocol
extension YourViewController: RoutingRequestCallback {
func onSuccess(routeResponse: MNRouteResponse) {
//You can proceed to request using one of the routes returned with routeResponse
//Check for error
if routeResponse.errorType == .noError {
routes = routeResponse.routes
}
}
func onError(errorCode: Int, errorMessage: String, alertIds: [String]) {
}
}
//Make sure routes are not empty, and choose a route from the list
let route = routes.first
//Your can now make a route request with the route. In order to receive route status updates, you also pass a delegate to protocol RouteStatusCallback.
CoreApi.RoutingManager.startNavigation(route: route, routingStatusCallback: self)
//Your delegate will need to be implement the methods of *RoutingStatusCallback*.
extension YourViewController: RoutingStatusCallback {
func onRoutingStatus(isRoutingModeOn: Bool, latestRouteResponse: MNRouteResponse) {
// Indicates a status change for the latest route response
// For example, if isRoutingModeOn is false, UI can adjust accordingly
}
func onRouteInstructionReceived(routeNode: MNRouteNode) {
// Called when a new instruction is available for the real-time navigating user
}
func onRouteSegmentReached(currentRouteSegment: MNRouteSegment,
visitedRouteSegments: [MNRouteSegment],
upcomingRouteSegments: [MNRouteSegment]) {
//Called when a route segment has been reached.
}
func onUserProgressAlongRoute(routeUserProgress: MNRouteUserProgress) {
//This function will be called as user continues progress along route
}
func onRouteRecalculation(newRouteResponse: MNRouteResponse) {
// Called when the user deviates from the route provided
// and a new route is automatically recalculated
}
func onDestinationReached(destinationEntityId: NSInteger) {
// Called when the user reaches the destination (specified by the destinationEntityId)
}
}
Understanding Route Responses
A RouteResponse contains a boolean which indicates whether or not the RouteRequest was successfully processed. An error may occur for several reasons, such as if an invalid start or data was provided, or a route could not be found.

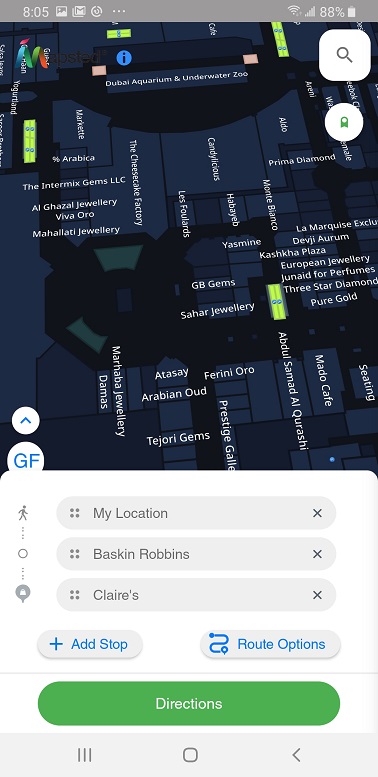

A requested route may involve single or multiple destinations. A RouteResponse consists of a RouteVector (a list of Route objects), where each Route represents a trip to a specific destination. Each Route consists of a RouteSegmentVector (a list of RouteSegment objects), where each RouteSegment represents a separate segment of the route, such as a different floor inside a building, or an indoor-outdoor segment. Each RouteSegment consists of a RouteNodeVector (a list of RouteNode objects), where each RouteNode represents a specific location, and possibly, a corresponding instruction.
// Note: Do not forget to handle null cases
// when you receive a routingResponse from RouteingRequestCallback
void onRoutingResponseReceived(RoutingResponse routingResponse) {
boolean success = routingResponse.isSuccessful();
if(!success) {
String error = routingResponse.getError();
ErrorType errorType = routingResponse.getErrorType();
//check or log the error or errorType
return;
}
/*
If multiple destinations are requested, there may be multiple routes.
Each route represents the trip to a specific destination.
*/
List<Route> routes = routingResponse.getRoutes();
// The route index that is currently selected (e.g., in route preview mode)
Route currentRoute = mapApi.getCurRoute();
// All route segments for the specifc route (e.g., multiple floors or indoor-outdoor)
List<RouteSegment> routeSegments = route.getSegments();
// Loop through all route segments
for (RouteSegment routeSegment : routeSegments) {
// Outside property, within property, or within building
RouteSegmentType segmentType = routeSegment.getSegmentType();
// get path mercators for UI plotting
MercatorVector smoothedRoute = routeSegment.getPath();
// Can iterate over non-smoothed (discretized) route nodes
for (RouteNode routeNode : routeSegment.getRouteNodes()) {
// key points will have instructions
boolean isKeyPoint = routeNode.isKeyPoint();
if(isKeyPoint) {
Instruction instruction = routeNode.getInstruction(appContext);
// instruction will take into account localization, if supplied
// default is english
String instructionText = instruction.text;
// You can customize your own behaviour by using the instruction type
// e.g., TURN_LEFT, TURN_RIGHT, ENTER_BUILDING, ...
InstructionType instructionType = instruction.instructionType;
// drawables for instruction type
int drawableId = instruction.drawableResId;
}
}
}
}
// ...
func routeResponseReceived(response: MNRouteResponse) {
guard response.isSuccessful else {
// routing failed
return
}
/*
If multiple destinations are requested, there may be multiple routes.
Each route represents the trip to a specific destination.
*/
let routes = response.routes
//Index into routes to access a particular route
let route = routes[0];
//You can access individual segments of a route as follows
let routeSegment = route.segments[1] //size checks are skipped for brevity
let segmentType = routeSegment.segmentType // Outside property, within property, or within building
// Smoothed route for UI plotting
let smoothedRoute = routeSegment.smoothedRouteNodes
//Get instructions
for routeSeg in route.segments {
for routeNode in routeSeg.routeNodes {
if routeNode.isKeyPoint {
// instruction will take into account localization, if supplied
// default is english
let instruction = routeNode.instruction
// You can customize your own behaviour by using the instruction type
// e.g., TURN_LEFT, TURN_RIGHT, ENTER_BUILDING, ...
let instructionType = routeNode.instructionType
// EntityId of the instruction's landmark (-1 if doesn't exist)
let landmarkEntityId = routeNode.landmarkEntityId
}
}
}
}
Programmatically Add Points-of-Interest
Mapsted Maps supports programmatically adding and wayfinding to your own Points of Interest (POI). You can create a Tag object which holds the necessary location data. Your custom Tag or POI can be added to the user's itinerary and/or be navigated to. You also have the ability to add multiple tags at the same time, or to delete all tags from a property.
// Create MercatorZone object
MercatorZone mercatorZone = new MercatorZone(propertyId, buildingId, floorId, xCoordinate, yCoordinate);
// Create the Tag object which holds the specific location
Tag tag = new Tag(tagName, propertyName, creationTimeStamp, propertyId, buildingId, mercatorZone);
// When using prebuilt UI/UX,
// This will place a pin on the POI location and provide options for adding to itinerary or navigation
mapUiApi.setCustomTag(tag);
// ...
// When not using prebuild UI/UX,
// You can also programmatically add your tag to a RouteRequestBuilder (e.g., destination)
RouteRequest request = new RouteRequestBuilder()
.setRouteOptions(routingOptions)
.setStartSearchable(myStartSearchable) // only if not from 'MyLocation'
.addDestination(tag)
.build();
let zone = MNZone(propertyId: thePropertyId, buildingId: theBuildingId, floorId: theFloorId)
let mercator = MNMercator(x: xCoordinate, y: yCoordinate, z: zCoordinate)
// When using prebuilt UI/UX,
// This will place a pin on the POI location and provide options for adding to itinerary or navigation
if let mapsVC = MapstedMapUiViewController.shared as? MapstedMapUiViewController {
let newTagName = "My Tag";
mapsVC.addTag(tagName: newTagName, tagPos: MNPosition(zone: zone, loc: mercator))
//Use the addTags method to add more than one tag at once.
//Initialize and populate your tags
let multipleTags: [MNTag] = ...
//Add the batch at once.
mapsVC.addTags(tags: multipleTags)
/*
Use deleteAllTags to delete all tags added to a property
*/
let pId = 1234
mapsVC.deleteAllTags(propertyId: pId)
}
Accessibility
Accessibility Routing
Mapsted SDK supports accessibility routing. When enabled, the provided routes avoid stairs, steps, and escalators, and use ramps or elevators to help the user navigate to their destination instead. For even finer control, the SDK also allows for users to specify specific transitions which they would like to take, for example if the user would prefer to take the escalator or elevator over stairs.
RouteOptions routeOptions = new RouteOptions();
// If full accessibility is desired, it can be enabled
// Note that this will override all other customizations for stairs, escalators, elevators
routeOptions.setAccessibility(true);
// Alternatively, if for example, the user perfers escalators/elevators over stairs
// The following can be used
routeOptions.setAccessibility(false);
routeOptions.setIncludeStairs(false);
routeOptions.setIncludeEscalators(true);
routeOptions.setIncludeElevators(true);
// Create RouteRequest and process. See Wayfinding section for more information.
//Create an instance of MNRouteOptions. You can configure the first three parameters based on whether you prefer
//stairs/escalators/elevators. The MNRouteOptions object is used to create a route request.
let useStairs = false
let useEscalators = true
let useElevators = true
let routeOptions = MNRouteOptions.init(useStairs, escalators: useEscalators, elevators: useElevators, current: true, optimized: true)
//There is an accessibility mode that overrides previous settings.
routeOptions.setAccessibility(true)
Localization
The Mapsted SDK offers multiple language support, including support for both left-to-right and right-to-left languages. Support is automatically provided for most languages, but appropriate translation and font files would be necessary to support non-mainstream languages. This is handled automatically when using the Map UI SDK or prebuilt UI/UX.
Localization Example
The figures below show the same map view in English and Arabic, respectively. As you can see, the map UI automatically handles the left-to-right and right-to-left localizations.
Programmatically Controlling Localization
The Mapsted mobile SDK will automatically capture the localization based on the device's settings, if the selected language is supported. If the language is not available, it will automatically default back to English. The localization can also be modified programmatically, as shown below.
// Sample usage for listening for language events, notifying the Mapsted Map
// Note that when using the Mapsted Map-Ui or prebuilt UI/UX this is handled automatically
LocaleManager.getInstance(context).getLanguageMutableLiveData().observe(mActivity, (languageLiveData) -> {
mapApi.mapView().config().setLanguageCode(languageLiveData, (language, propertyId, isAvailable) -> {
// TODO: Update the rest of the UI
});
});
//iOS automatically relaunches the app in use when the the user changes their
//preferred language from settings. To change the user default language programmatically,
//call the set method of the system provided UserDefault class by means of its shared standard object.
UserDefaults.standard.set(["en"], forKey: "AppleLanguages")
UserDefaults.standard.synchronize()
//You will need to provide the two letter language code to the method.
//Standard language code values include "en" for English, "fr" for French, "ar" for Arabic, etc.
Deep link
Mapsted SDK supports parsing deep links for various sdk features.
Deep links must be in following format
https://{your_host}/deeplink/{your_app_name}/{feature_name}/{optional_sub_feature}?{related_parameters}
your_host: your host/domain nameyour_app_name: an identifier for your appfeature_name: feature identifier which may befeedsormapoptional_sub_feature: optional sub feature are available iffeature_nameismap. They includeselect(for selecting an entity) orrouting(routing feature)related_parameters: additional parameters like property, building, floor or entity for their respective ids. It also includesdestinationswhich is list ofbuildingId:entityIditems.
Deep link Examples
| Description | Deep link |
|---|---|
| Campaign feeds for all properties | https://yourdomain.com/deeplink/appname/feeds |
| Campaign feeds for a particular property | https://yourdomain.com/deeplink/appname/feeds?property=504 |
| Select entity on map | https://yourdomain.com/deeplink/appname/map/select?property=123&building=111&floor=222&entity=333 |
| Open route preview | https://yourdomain.com/deeplink/appname/map/routing?property=123&destinations=111:333,111:444 Note: destinations are in |
Deeplink Setup
Register your deeplink URLs.
<activity android:name=".activities.MainActivity"
android:label="@string/app_name"
android:launchMode="singleTop"
android:screenOrientation="portrait">
<intent-filter android:autoVerify="true">
<action android:name="android.intent.action.VIEW" />
<category android:name="android.intent.category.DEFAULT" />
<category android:name="android.intent.category.BROWSABLE" />
<data android:host="yourdomain.com" />
<data android:pathPrefix="/deeplink/appname"/>
<data android:scheme="https" />
<data android:scheme="http" />
</intent-filter>
</activity>
Handling deep links
The mobile-sdk provides utility methods for checking whether or not a deeplink can be handled and for handling the deeplink events. See sample code below.
// In you main activity
// Make sure you've implemented the MapstedMapUiApiProvider interface
private MapstedMapApi mapApi;
private MapUiApi mapUiApi;
private CoreApi coreApi;
@Override
onCreate(...){
// ....
// Initialize Mapsted Sdk
coreApi = MapstedCoreApi.newInstance(this);
mapApi = MapstedMapApi.newInstance(this, coreApi);
mapUiApi = MapstedMapUiApi.newInstance(this, mapApi);
// ....
// Check if the provided deeplink is supported by SDK, if yes proceed for its invokation
// after the initialization of SDK callback execution
// Here is a sample implementation
Uri uri = getIntent().getData();
if (ProcessMapDeepLink.Companion.isMapstedSupportedDeeplink(uri)) {
// Initialize sdk and process deeplink
coreApi.setup().initialize(...., new CoreApi.CoreInitCallback() {
@Override
public void onSuccess() {
ProcessMapDeepLink.Companion.executeDeepLink(this, containerViewId, uri);
}
// ...
});
}
else {
// Deeplink not supported by SDK
}
}
// In you main activity
// Make sure you've implemented the MapstedMapUiApiProvider interface
private val coreApi: CoreApi? = null
private val mapApi: MapstedMapApi? = null
private val mapUiApi: MapUiApi? = null
val activity = this
var uri : Uri = intent.data ?: Uri.parse(" ")
override fun onCreate(...., ....) {
// ....
// Create Mapsted Sdk objects
coreApi = MapstedCoreApi.newInstance(context)
mapApi = MapstedMapApi.newInstance(context, coreApi)
mapUiApi = MapstedMapUiApi.newInstance(context, mapApi)
// Check if the provided deeplink is supported by SDK, if yes proceed for its invokation
// after the initialization of SDK callback execution
// Here is a sample implementation
if (ProcessMapDeepLink.isMapstedSupportedDeeplink(uri)) {
// Initialize sdk and process deeplink
coreApi?.setup()?.initialize(CoreParams(), object : CoreInitCallback {
override fun onSuccess() {
ProcessMapDeepLink.executeDeepLink(activity, uri);
}
// ...
})
}
else {
// Deeplink not supported by SDK
}
}
guard let url = URL(string: "https://mydomain.com/deeplink/myappname/map/routing?property=123&destinations=111:333,111:444") else {
//Not valid URL
return
}
CoreApi.processDeepLink(uri: url, completion: { (handled, deepLinkFeature, deepLinkData) in
//Check whether it was handled
guard handled else {
//Not Mapsted deeplink. Handle via your own methods
return
}
//Was handled as a Mapsted deeplink, will be processed accordingly
switch (deepLinkFeature, deepLinkData) {
case (.MapSelect, .MapSelect(propertyId: let p, buildingId: let b, entityId: let e)):
//handle map selection
//print("Select \(p)-\(b)-\(e)")
break;
case (.MapRouting, .MapRouting(searchEntities: let entities)):
//handle destinations
//print("Map Routing to \(entities.count) destinations")
break;
/* Handle other cases */
default:
//handle other cases
break;
}
})
Geofences
The geofence-sdk allows you to programmatically incorporate precision hyperlocal geofences which can be triggered based on a combination of various criteria (e.g., vicinity to a point of interest), direction (e.g., on enter, on exit), as well as other factors (e.g., trigger immediately, trigger on dwell for some timespan). These geofences can be programmatically created and a callback is received if the combinations of conditions trigger simultaneously. Note that these geofences require the mobile sdk to be given location permissions and be running in either the foreground or background.
When registering a geofence, you will be require to supply your own geofenceId. Likewise, you can register a listener and be notified when the geofence triggers.
// Setup sample Geofences for Square One Shopping Center (sample property)
int propertyId = 504;
int buildingId = 504;
int floorOneId = 941; // L1
int floorTwoId = 942; // L2
// Create instance of GeofenceApi
geofenceApi = MapstedGeofenceApi.newInstance(this, coreApi);
// Create single geofence trigger (Poi Vicinity) for two different Poi's
geofenceApi.geofenceTriggers().addGeofenceTrigger(propertyId,
new GeofenceTrigger.Builder(propertyId, "poi-trigger-210923") // example geofenceId
.setLocationCriteria(new PoiVicinityLocationCriteria.Builder()
.addEntityZone(new EntityZone(propertyId, buildingId, floorTwoId, 414)) // Foot Locker
// Can add more EntityZones if desired
.setActivationDistanceTh(10.0F)
.setTriggerDirection(ILocationCriteria.LocationTriggerDirection.ON_ENTER)
.build())
.build());
// Create a list of geofence triggers
List<GeofenceTrigger> geofenceTriggers = new ArrayList<>();
// Add Enter Property (Square One)
geofenceTriggers.add(new GeofenceTrigger.Builder(propertyId, "property-trigger-1231")
.setLocationCriteria(new PropertyLocationCriteria.Builder(propertyId)
.setTriggerDirection(ILocationCriteria.LocationTriggerDirection.ON_ENTER)
.build())
.build());
// Add Enter Floor (Square One - L1)
geofenceTriggers.add(new GeofenceTrigger.Builder(propertyId, "floor-trigger-9343")
.setLocationCriteria(new FloorLocationCriteria.Builder(floorOneId)
.setTriggerDirection(ILocationCriteria.LocationTriggerDirection.ON_ENTER)
.build())
.build());
// Register list of triggers
geofenceApi.geofenceTriggers().addGeofenceTriggers(propertyId, geofenceTriggers);
// Add callback listener
geofenceApi.geofenceTriggers().addListener((propertyId, geofenceId) -> {
// Optional: Unsubscribe to ensure that event triggers only once
boolean unSubscribeSuccess = geofenceApi.geofenceTriggers().removeGeofenceTrigger(propertyId, geofenceId);
Log.v("onGeofenceTriggered: pId: %d -> geofenceId: %s", propertyId, geofenceId);
// Handle geofenceId event (e.g., UI pop-up, logging to analytics, etc.)
});
// Setup sample Geofences for Square One Shopping Center (sample property)
let propertyId = 504
let buildingId = 504
let entityId = 414 // Foot Locker
let floorId = 941 //L1
let delaySecond: Float = 5.0
// Register callback
MapstedGeofence.GeofenceManager.shared.addListener(geofenceCallback: self)
// Enter POI Vicinity (Foot Locker)
let addEntityEntryTrigger = GeoFenceUtility.shared.createGeofenceForEntity(
propertyId: propertyId, entityId: entityId, buildingId: buildingId, floorId: 942,
geofenceId: "Trigger-Entity-Entry-\(entityId)", delaySecond: delaySecond, direction: .On_Enter)
// Exit POI Vicinity (Foot Locker)
let addEntityExitTrigger = GeoFenceUtility.shared.createGeofenceForEntity(
propertyId: propertyId, entityId: entityId, buildingId: buildingId, floorId: 942,
geofenceId: "Trigger-Entity-Exit-\(entityId)", delaySecond: delaySecond, direction: .On_Exit)
// Enter Property (Square One)
let addPropertyEntryTrigger = GeoFenceUtility.shared.createGeofenceForProperty(
propertyId: propertyId, geofenceId: "Trigger-Property-Entry-\(propertyId)", delaySecond: delaySecond, direction: .On_Enter)
// Exit Property (Square One)
let addPropertyExitTrigger = GeoFenceUtility.shared.createGeofenceForProperty(
propertyId: propertyId, geofenceId: "Trigger-Property-Exit-\(propertyId)", delaySecond: delaySecond, direction: .On_Exit)
// Enter Building (Square One)
let addBuildingEntryTrigger = GeoFenceUtility.shared.createGeofenceForBuilding(
propertyId: propertyId, buildingId: buildingId, geofenceId: "Trigger-Building-Entry-\(buildingId)",
delaySecond: delaySecond, direction: .On_Enter)
// Exit Building (Square One)
let addBuildingExitTrigger = GeoFenceUtility.shared.createGeofenceForBuilding(
propertyId: propertyId, buildingId: buildingId, geofenceId: "Trigger-Building-Exit-\(buildingId)",
delaySecond: delaySecond, direction: .On_Exit)
// Enter Floor (L1)
let addFloorEntryTrigger = GeoFenceUtility.shared.createGeofenceForFloor(
propertyId: propertyId, floorId: floorId, geofenceId: "Trigger-Floor-Entry-\(floorId)",
delaySecond: delaySecond, direction:.On_Enter)
// Exit Floor (L1)
let addFloorExitTrigger = GeoFenceUtility.shared.createGeofenceForFloor(
propertyId: propertyId, floorId: floorId, geofenceId: "Trigger-Floor-Exit-\(floorId)",
delaySecond: delaySecond, direction:.On_Exit)
// For example, Create Array of Geofence triggers
self.arrGeoTriggers = [
addEntityEntryTrigger, addEntityExitTrigger,
addPropertyEntryTrigger, addPropertyExitTrigger, addBuildingEntryTrigger,
addBuildingExitTrigger, addFloorEntryTrigger, addFloorExitTrigger
]
// Add Geofence Triggers
let _ = MapstedGeofence.GeofenceManager.shared.addGeofenceTriggers(propertyId:propertyId, geofenceTriggers: self.arrGeoTriggers)
// ...
// Remove Geofence Trigger by geofenceId
MapstedGeofence.GeofenceManager.shared.removeGeofenceTrigger(propertyId:propertyId, geofenceId: geofenceId)
// Remove all Geofence Triggers
MapstedGeofence.GeofenceManager.shared.removeAllGeofenceTriggers(propertyId:propertyId)
// ...
// Example function for handling geofence callback
func handleGeofence(propertyId: Int, geofenceId: String) {
DispatchQueue.main.async {
// Setup example alert title/message
var altTitle: String? = ""
var altMsg: String? = ""
switch geofenceId {
case "Trigger-Entity-Entry-414":
altTitle = "Entity Entry alert"
altMsg = "You are entering Foot Locker at Square One Shopping Centre."
break
case "Trigger-Entity-Exit-414":
altTitle = "Entity Exit Alert"
altMsg = "You just exited Foot Locker at Square One Shopping Centre."
break
case "Trigger-Property-Entry-504":
altTitle = "Property Entry alert"
altMsg = "You are entering the Square One Shopping Centre property."
break
case "Trigger-Property-Exit-504":
altTitle = "Property Exit alert"
altMsg = "You just exited the Square One Shopping Centre property."
break
case "Trigger-Building-Entry-504":
altTitle = "Building Entry alert"
altMsg = "You are entering the Square One Shopping Centre building."
break
case "Trigger-Building-Exit-504":
altTitle = "Building Exit alert"
altMsg = "You just exited the Square One Shopping Centre building."
break
case "Trigger-Floor-Entry-941":
altTitle = "Floor Entry alert"
altMsg = "You are entering the Floor - L1 on Square One Shopping Centre."
break
case "Trigger-Floor-Exit-941":
altTitle = "Floor Exit alert"
altMsg = "You just exited the Floor - L1 on Square One Shopping Centre."
break
default:
break
}
// For example, setup an alert view to notify
let alert = UIAlertController(title: altTitle, message: altMsg, preferredStyle: .alert)
alert.addAction(UIAlertAction(title: "Ok", style: .default, handler: nil))
self.present(alert, animated: true, completion: nil)
}
}
Location Marketing
The Location Marketing module allows you to incorporate precision location-based Triggers, Events, or Feeds. Campaigns can be easily created, configured, managed, and published using the Mapsted Notify software. When using the Location Marketing module, these campaigns will be automatically synced with the Mapsted Maps - Mobile SDK.
Campaigns created via the Mapsted Notify Software can displayed as Feed items. Campaigns can also be associated with various Triggers. A Trigger is a combination of Location Criteria (e.g., geofence), Demographic Criteria (e.g., device type), and/or Behaviour Criteria (e.g., keyword searches).
When enabled, the Mapsted Maps - Mobile SDK will provide a callback to identify that a particular campaign and trigger has occurred, referred to as a Marketing Event. When using the Prebuilt UI/UX, the Marketing Event may be displayed as a Notification, a Dialog, or in a Feed Bar (a rectangular pop-up at the top of the screen). On the other hand, for Customizable UI/UX, the Marketing Event may be handled however you see fit.
Campaign Feeds
The Location Marketing module provides an API to retrieve the currently active campaigns. The campaign feeds may be retrieved for a single or multiple properties.
LocMarketing locMarketing = ...
// ------------------------
// Option 1: Customized UI/UX
// ------------------------
// Get Feeds and show in your own UI
// You can retrieve propertyId from mapApi or coreApi. Alternatively, if you need
// feeds for multiple properties, you can pass in an arraylist of propertyIds as well.
locMarketing.getFeedsAsync(propertyId, feedsList -> {
// show feeds to UI
});
// ------------------------
// Option 2: Prebuilt UI/UX
// ------------------------
// Use a FeedFragment. A FeedFragment shows the feed in a list. You can provide the campaignId argument to
// pre-scroll to that campaign. Campaign ids can be retrieved from LocMarketingListener
FeedFragment feedFragment = FeedFragment.newInstance(propertyId, null);
//use fragment manager to show the above feedFragment. The parent activity should implement FeedFragmentListener
//Parent activity
public MyActivity extends AppCompatActivity implements LocationMarketApiProvider, FeedFragmentListener {
...
@Override
public LocMarketing getLocationMarketingSdk() {
Logger.d("getLocationMarketingSdk: ");
if (locMarketing == null) {
locMarketing = setupLocMarketingSdk(coreApi);
}
return locMarketing;
}
@Override
void onFeedSelected(Feed feedItem){}
@Override
void onFeedShareClicked(Feed feedItem){}
@Override
void onFeedViewed(Feed feed){}
@Override
void onFeedFragmentViewCreated(int propertyId){}
...
}
//Import the Location Marketing SDK first
import LocationMarketing
//Instantiate Location Marketing API
let locMarketingManager = LocMarketingApi.shared
//If you have a variable for identifying the property you want to fetch feeds for
let myPropertyId = 123
//Define the callback method to handle feeds fetched for that property of your interest
func myCallbackMethod(fetchedCampaigns: [Campaign]) {
//extract the feeds from campaigns
for campaign in fetchedCampaign {
//do something
}
};
//Fetch feeds and pass them to the callback method which will know how to process them.
locMarketingManager.fetchCampaignsForProperty(propertyId: myPropertyId, completion: myCallbackMethod);
Campaign Triggers/Events
Marketing Events occur whenever the necessary Trigger Criteria have occurred. The Marketing Event can be handled in a number of different ways. For example, the campaign can be displayed using a Dialog or Feeds Bar (a rectangular pop-up at the top of the screen) when the app is foreground or a Notification when app is in background. Campaigns and Triggers can be configured using the Mapsted Notify software.
//activity onCreate
//When the user interacts with the notification or dialog, LocMarketingListener will
//receive callback to open the map or open the website.
LocMarketing.LocMarketingListener locMarketingListener = new LocMarketing.LocMarketingListener() {
@Override
public void navigateToMap(String campaignId, List<HomeEntity> homeEntityList) {
//use the mapApi to show the map
}
@Override
public void openWebsite(String campaignId, String websiteURL) {
//open browser or webview with the websiteUrl
};
@Override
public void showInInAppNotificationBar(Campaign campaign) {
//add this campaign to FeedsBarFragment
}
};
//initialize the sdk. Note, to initialize pass in a initialized coreApi instance. you can share this instance of LocMarketing through out your app.
LocMarketing locMarketing = new LocMarketing(context, coreApi, locMarketingListener);
//activity onNewIntent
public void onNewIntent(Intent intent) {
if (LocaMarketing.canHandle(intent)){
locMarketing.onNewIntent(intent);
} else {
super.onNewIntent(intent);
}
}
//Import the Location Marketing SDK first
import LocationMarketing
//Assuming you have already initialized, you can use its shared instance
let locMarketingManager = LocMarketingApi.shared
//To respond to notifications from the Mapsted Location Marketing API, set your delegate as listener
locMarketingManager.setListener(listener: self)
//For this to work, you delegate needs to have implemented the LocMarketingListener protocol
extension MyViewController : LocMarketingListener {
//Mandatory method
//Implementation is required for this method
public func navigateToMap(homeEntities: [EntityInfo]) {
//Choose from home entities and show on the map
}
//Optional method
//Provide an alternate implementation for the dismiss() method
//to perform additional actions after the notification popup is dismissed
func dismiss(action: Action?) {}
//Optional method
//override the openWebsite() method or return false to modify the default behavior
//By default, this method opens the websiteURL in an embedded webview.
func openWebsite(websiteURL: String) -> Bool { return false }
}
Alerts
The Alerts module allows you to incorporate precision location-based Alerts. These can be easily created, configured, managed, and published using the Mapsted Notify software. When using the Alerts module, these alerts will be automatically synced with the Mapsted Maps - Mobile SDK.
Scheduled Alerts
Scheduled alerts are one time or recurring alerts that are pre-scheduled. Similar to location marketing campaigns, scheduled alerts also has triggers that causes the alerts to activate when the location criteria are met. Scheduled alerts can be created and set by signing into the Mapsted Hub Web Software.
// Setup required fields
private AlertsApi alertsApi; // Handles alerts functionalities
private InAppNotificationsApi inAppNotificationApi; // Provides in-app notification UI
// ...
// After initializing foundation SDKs, setup Alert & InappNotification sdks
// 1. Setup inapp notifications
// fragmentContainerView is the view for inflating the inapp notification
inAppNotificationApi = new MapstedInAppNotificationsApi(getSupportFragmentManager(), fragmentContainerView);
// 2. Setup alerts
alertsApi = MapstedAlertsApi.newInstance(getApplicationContext(), coreApi);
alertsApi.setup().syncMapUiApi(mapUiApi); // Setup sync with map-ui-sdk
// 3. Setup up AlertsParams
AlertsParams alertsParams = new AlertsParams.Builder(this, inAppNotificationApi).build();
// 4. Initialize alerts-sdk
alertsApi.setup().initialize(alertsParams);
// ...
// 5. Example usages
List<ScheduledAlert> activeAlertsForProperty = alertsApi.repo().getActiveAlerts(propertyId);
List<ScheduledAlert> activeAlertsForEntity = alertsApi.repo().getActiveAlerts(propertyId, buildingId, entityId);
alertsApi.addAlertsOnChangeListener((propertyId, before, after) -> {
// Notified when active alerts changed
// before: previous set of active alerts
// after: new set of active alerts
});
// ...
// 6. Make sure to call onDestroy
@Override
protected void onDestroy() {
// ...
if (alertsApi != null) {
alertsApi.lifecycle().onDestroy();
}
// ...
}
let myPropertyId = 504;
//to get list of ongoing scheduled alerts for a property
let alertList = AlertsApi.shared.getOngoingAlertsForProperty(propertyId)
for scheduled in alertList {
//do something with each
}
Emergency Alerts
To receive emergency alerts, first send your firebase token. Emergency alerts can be created and sent by signing into the Mapsted Hub Web software. Emergency alerts are sent via Firebase messaging service. Therefore, you would need to register your app on Firebase console.
// 1. Setup alertApi as in Scheduled Alerts example above
// 2. Setup your own Firebase Token (if desired)
FirebaseMessaging.getInstance().getToken().addOnCompleteListener(task -> {
if (!task.isSuccessful()) {
return;
}
String token = task.getResult();
alertsApi.setup().updateFirebaseTokenForEmergencyAlerts(getApplicationContext(), token);
});
// 3. Example usages
alertsApi.repo().getEmergencyAlerts(propertyId, emergencyAlerts -> {
// ...
});
...
let identifier = "com.myCompany.myApp" //Usually the Bundle identifier from your app
AlertsApi.shared.sendFirebaseToken(token: fcmToken, appIdentifier: identifier);
...
Then, configure your app to receive the firebase messages
//create a service by extending EmergencyAlertsFirebaseMessagingService.
//Observe {@link InAppNotificationLiveDatas.DeactivatedLiveData} and
//{@link InAppNotificationLiveDatas.ActivatedLiveData} to get
//activated or deactivated emergency alerts when the app is in foreground.
//When the app is in background, android notification is created. When the
//notification is opened, the app will open with a deeplink in following format.
//`https://share.mapsted.com/deeplink/defaultapp/alerts/emergency_alert?id={id}`.
//You can use the AlertManager to get details about the alert with id.
public class MyEmergencyFirebaseMessagingService extends EmergencyAlertsFirebaseMessagingService {
@Override
public void onNewToken(@NonNull String token) {
alertsManager.sendFirebaseTokenForEmergencyAlerts(getApplicationContext(), token);
}
}
<-- Register your service in the AndroidManifest -->
<application ..>
<service
android:name="com.example.myapp.MyEmergencyFirebaseMessagingService"
android:exported="false">
<intent-filter>
<action android:name="com.google.firebase.MESSAGING_EVENT" />
</intent-filter>
</service>
</application>
..
/*
In a typical scenario, you integrate Firebase messaging AppDelegate via an extension
to the Firebase `MessagingDelegate` protocol
*/
extension AppDelegate : MessagingDelegate {
//implement this method
func messaging(_ messaging: Messaging, didReceiveRegistrationToken fcmToken: String?) {
/** Other code .... */
let appIdentifier = "com.myCompany.myApp" //Usually the Bundle identifier from your app
AlertsApi.shared.sendFirebaseToken(token: fcmToken, appIdentifier: identifier);
/** Other code .... */
}
}
/*
If your application was launched or resumed because of the remote notification, you will get a callback
in the AppDelegate's `application(_:didReceiveRemoteNotification:fetchCompletionHandler:) method
*/
func application(_ application: UIApplication,
didReceiveRemoteNotification userInfo: [AnyHashable: Any],
fetchCompletionHandler completionHandler: @escaping (UIBackgroundFetchResult) -> Void) {
//Ask the Alerts API to process the notification if applicable
AlertsApi.shared.processNotification(userInfo: userInfo, completion: { (handled, error) in
if handled {
//Alert Found
print("Alert Handled")
}
if let error = error {
print("\(error.localizedDescription)")
}
})
}
/*
The `application(_:didReceiveNotificationResponse:withCompletionHandler:) method will be called by
your app on the Application Delegate when the user responded to the notification
*/
extension AppDelegate : UNUserNotificationCenterDelegate {
func userNotificationCenter(_ center: UNUserNotificationCenter, didReceive response: UNNotificationResponse, withCompletionHandler completionHandler: @escaping () -> Void) {
/** ... Some code **/
//If you are using Alerts SDK, ask it to process any alerts
AlertsApi.shared.processNotification(response: response, window: self.window, completion:{ handled, error in
if handled {
}
if let error = error {
}
})
//If you are using LocMarketing SDK, ask it to process any campaign events
LocMarketingApi.shared.processNotification(response: response, window: self.window, completion:{ success, error in
if handled {
}
if let error = error {
}
})
/** ... More code **/
}
//to get list of emergency alerts for a property
let myPropertyId = 504
AlertsApi.shared.fetchEmergencyAlerts(propertyId: myPropertyId, callback: { alertList in
for emergency in alertList {
// do something with each
}
})
Prebuilt UI/UX
We offer a wide variety of Prebuilt app templates and UI components which have been designed and optimized for use with the complete Mapsted Maps Mobile framework.
Depending on your desired level of customization, you can choose from several Prebuilt UI/UX options. Our Prebuilt app templates provide a fully immersive mobile application that includes basic customizations such as colour changes. For more advanced customization, you can use our Prebuilt UI components to build your own application. These components include a suite of Prebuilt UI views, such as wayfinding UI/UX, itinerary management, and category lists.
Mobile Sdk Style Customization
When integrating the Mapsted mobile-sdk into your application, you will notice that many of the mobile-sdk views will adapt based on your app theme. However, some views include additional custom styling which are intended to accentuate various key features (e.g., highlighted button colour). These additional view stylings can be customized as outlined below.
// in style.xml file, overwrite the desired Mapsted styles or individual fields
// Mapsted map bottom sheet style
<style name="MapstedButtonMapBottomSheet"></style>
// Mapsted bottom sheet directions button style
<style name="MapstedButtonMapBottomSheetDirections"></style>
// Mapsted map action button style
<style name="MapstedMapActionButton"></style>
// Mapsted rounded corner button style
<style name="MapstedRoundCornerButton"></style>
// Accented rounded button (e.g., for GO in RoutePreview screen)
<style name="MapstedRoundCornerButtonAccent"></style>
// To be added shortly
Prebuilt App Templates
Our Prebuilt app templates allow you to experience the look and feel of a full mobile application within minutes, while providing basic customization options to give the app your own look and feel. See below for examples of a few app template UI screens.
To learn how to enable a Prebuilt app template, see the sample code below.
// Extending a Mapsted App Template enabled Mapsted's Prebuilt app templte
// Note that this could also be achieved using an Intent to launch
// MapstedMallTemplateMainActivity
public class MainActivity extends MapstedMallTemplateMainActivity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
// Anything you want...
}
@Override
protected CustomParams getCustomParams() {
return CustomParams.newBuilder(this)
// Setup desired custom params
.build();
}
}
// Go to the AppDelegate.swift file in the main bundle of your application.
// Inside the application(_:didFinishLaunchingWithOptions:) method, add the relevant lines as per the example below
internal func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {
...
//Compute copyright text OR use from localizable strings
let copyRightText = NSLocalizedString("CopyrightText", comment: "Main App")
//Set the name of the animation gif image, without the extension
let startupAnimationGif = "Mall_mApp_GIF_Slower";
//Instantiate the main screen
let mainScreen = LaunchViewController.splashScreen(copyrightText: copyRightText, animationGif: startupAnimationGif);
//Set the launch screen as the root view controller
self.window?.rootViewController = mainScreen
//Show the window and make it the key window
self.window?.makeKeyAndVisible()
...
return true
}
Prebuilt UI Components
The Prebuilt app templates outlined in the previous section use a variety of Prebuilt UI components. Our UI components are specific UI/UX views which are designed and optimized to interact with the Mapsted Maps Mobile framework. This allows you to custom pick and choose which aspects of our Prebuilt UI/UX you want to use in your application.
The Prebuilt UI components are an excellent choice when you already have your own application and want to easily add some additional functionality based on the Mapsted Maps Mobile framework. For example, one common usage is to trigger a Mapsted Map view and use various Prebuilt UI components, like wayfinding UI/UX or itinerary management, when a maps button is clicked within your application. In other scenarios, various Prebuilt UI components can be reused in other areas of your application, for example category lists.
Customizable UI/UX
The customizable UI/UX allows you to use various prebuilt UI/UX components, while also allowing you the option of adding your own customizable UI. As an example, you can use your own UI views on the Mapsted Map. This section explains how you can create and display custom views on the map. The two examples below show how custom UI elements, such as the blue "Explore More" button and the horizontal floating category list, were added to the Mapsted Map component.
Programmatically Add, Update, and Remove Custom Views
Any view can be programmatically added, modified, and removd from the Mapsted Map. Each view that is passed in should be given a custom view tag (a string to uniquely identify the view), which can be used for retrieving/modify, and/or removing the view. The sample code below shows how a view can be added, modified, and removed.
// Note that if you want to add customizable UI views you need to have initialized your SDK as follows:
// Setup your custom params
CustomParams params = CustomParams.newBuilder()
// Add customization options
.build();
params.setActivity(this);
// When you initialize your SDK, you must provide both containers for the BaseMap and MapUi
params.setBaseMapContainerView(mBinding.flBaseMap); // Container for the MapView
params.setMapUiContainerView(mBinding.flMapUi); // Container for MapUiView & Custom UI
mapUiApi.setup().initialize(params, new MapUiApi.MapUiInitCallback() {
@Override
public void onCoreInitialized() {
//Internally core api has initialized
}
@Override
public void onMapInitialized() {
//Internally map api has initialized
}
@Override
public void onSuccess() {
// initialized successfully
}
@Override
public void onStatusUpdate(SdkStatusUpdate sdkUpdate) {
//sdk status update during initialization
}
@Override
public void onFailure(SdkError sdkError) {
// initialization failed
}
});
// ...
// Create Custom View (e.g., contains a button named with id custom_button)
View inflate = LayoutInflater.from(this).inflate(R.layout.custom_layout, null, false);
Button customButton = inflate.findViewById(R.id.custom_button);
// For example, set click listener
customButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// Handle click event
}
});
// Display custom View on the map
mapApi.mapView().customView().addViewToMapFragment("my_custom_tag", myView);
// Get custom View on the map
View myView = mapApi.mapView().customView().getViewOnMap("my_custom_tag");
// Can now modify view, as desired (e.g., change visibility)
// ...
// Remove custom View from the map
mapApi.mapView().customView().removeViewFromMap("my_custom_tag");
//To access UI components, you need to add the following import
import appuikit
//To facilitate adding UI components to your app, a ContainerViewController class is provided
//which allows easy swapping in/out of viewcontrollers. To use this, first drag and drop a container
//view to your viewcontroller and set the embedded viewcontroller class in IB to ContainerViewController.
//Assuming you have named the embedded segue "containerSegue", you can obtain a reference to the
//ContainerViewController as follows.
override func prepare(for segue: UIStoryboardSegue, sender: Any?) {
if segue.identifier == "containerSegue" {
if let containerVC = segue.destination as? ContainerViewController {
self.containerVC = containerVC
}
}
}
//Now to add a viewcontroller, simply call addController. Parameter isNew should be
//set to true in case you want to maintain a stack of the viewcontrollers in memory
//for fast swapping. If set to false, only one viewcontroller will be retained.
containerVC.addController(controller: categoryListVC, yOffset: 0, isNew: false)
//To display a floating category list, access the CategoryCarouselViewController.
//Pass categoryUIDs which is list of category uids to display. The alignment can
//be horizontal/vertical. Your viewcontroller needs to conform to CategorySelectionDelegate
//to get notified when user selects a category.
if let categoryListVC = CategoryCarouselViewController.instantiateViewController(propertyInfo: propertyInfo, categoryUIDs: categoryUIDs, alignmentIsVertical: false, delegate: self) as? CategoryCarouselViewController {
categoryListVC.setCategoryTextColor(color: .white)
containerVC.addController(controller: categoryListVC, yOffset: 0, isNew: false)
}
extension YourViewController : CategorySelectionDelegate {
func selectedCategory(category: MNCategory) {
//handle the selection...
}
}
Location Sharing
The Mapsted Maps Mobile framework offers several location-sharing options which use the power of our location positioning technology to help users interact with friends or colleagues.
Using location sharing, users can also display their locations on each other's maps. This can be especially useful for couples or family members that wish to visit different places in a large venue, while still being aware of each other's location.
Using location tags, users can easily share a specific location and/or message to one another for easy coordination. For example, a user could tag the food court on level 3 of a shopping centre, and share the location tag with several friends, along with a message that reads, "Meet me at 1 pm for lunch."
Sharing User's Location
We are providing this feature to quickly share user’s location to anyone when they are inside a Property premises. When user initiates location sharing, a url will be provided. This url will be used to share User’s current location through sharable media like messages, WhatsApp, chats etc. When other user receive this location share link, and when they select it, they will be redirected to web page showing them the shared location and as user moves his location will be updated here. We also provide listners to location updates and you can utilise this to update any UI if you want.
// Setup location share api instance instantiation, once CoreApi & MapUiApi are initialized
LocationShareApi liveLocationShareAPI = new MapstedLocationShareApi(this.getApplicationContext(), coreApi, mapUiApi);
liveLocationShareAPI.setup().initialize();
// Start location sharing
liveLocationShareAPI.events().shareLiveLocation(selectedPropertyId, position, liveLocationResponse -> {
if (liveLocationResponse != null && liveLocationResponse.getSuccess()) {
// location sharing started
}
});
// Stop location sharing
liveLocationShareAPI.events().deleteSharedLiveLocation(liveLocationResponse -> {
// ...
});
//Setting up location share callbacks
liveLocationShareAPI.addLiveLocationTriggerListener(status -> {
//If status is true, location sharing is started.
//If status is false, location sharing is stopped.
});
// Destroy instance in onDestroy()
liveLocationShareAPI.lifecycle().onDestroy();
//Import the Location Sharing SDK first
import MapstedLocationShare
//Initialize/Start Location sharing
LocationShareApi.location.startLocationShareUpdates(propertyId: propertyId, position: position) { shareLiveLocResponse in
if let uShareLiveLocResponse = shareLiveLocResponse {
if uShareLiveLocResponse.success {
if let url = uShareLiveLocResponse.url {
//Share url to the other user whom you want to allow to track your location.
}
}
}
}
//Stop live location share:
LocationShareApi.location.stopLocationShareUpdates()
//To check if Share live location is enabled.
let liveLocationShareEnabled = LocationShareApi.location.isShareLiveLocationEnabled()
//Start observing live location share status changes
LocationShareApi.location.addShareLiveLocationChangeListener(listener: self)
//Stop observing live location share status changes
LocationShareApi.location.removeShareLiveLocationChangeListener(listener: self)
Location Tags
When location tagging is enabled in your application, users can use a long press gesture on the map to set a tag. This tag can be labelled, saved, navigated to, or shared with another user. Users also have the option to attach a message to the tag.
To learn how to enable or disable a location tag, see the sample code below.
// For example, to enable tag UI when initializing
CustomParams params = CustomParams.newBuilder(...)
// Other parameters
.setEnableTagUI(true) // enable tag UI
.build();
// ...
// Note that this can also be adjusted in runtime, as shown below
// Enable location tagging
mapUiApi.tags().setEnableTagUI(true); // for the UI views
// Disable location tagging
mapUiApi.tags().setEnableTagUI(false); // for the UI views
//Enable location tagging
MapstedMapApi.shared.allowTagsOnMap(enable: true)
//Disable location tagging
MapstedMapApi.shared.allowTagsOnMap(enable: false)
Location Tags sharing (Comming Soon)
Once the location tag is shared and received by another user, they can easily view and navigate to it. This provides a simple and easy-to-use approach for sharing information about a specific location with a friend or colleague.
